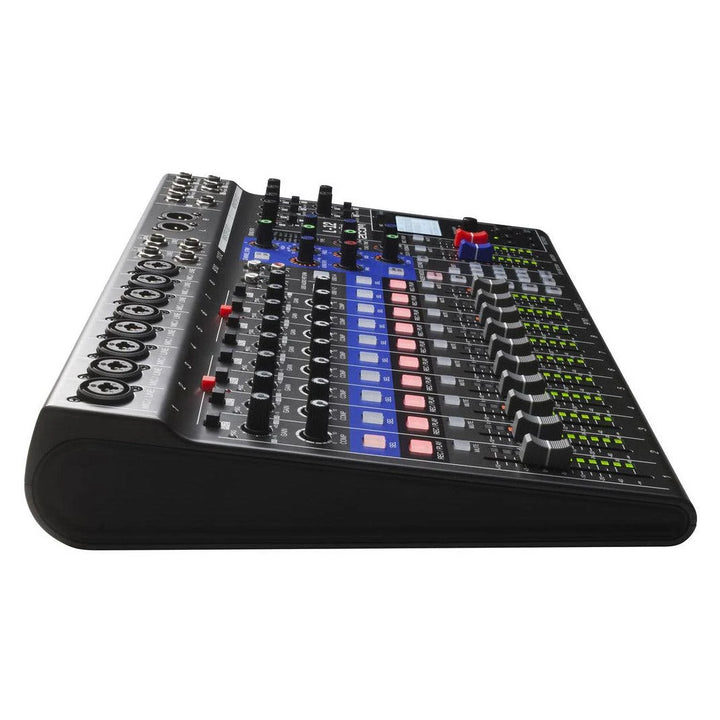

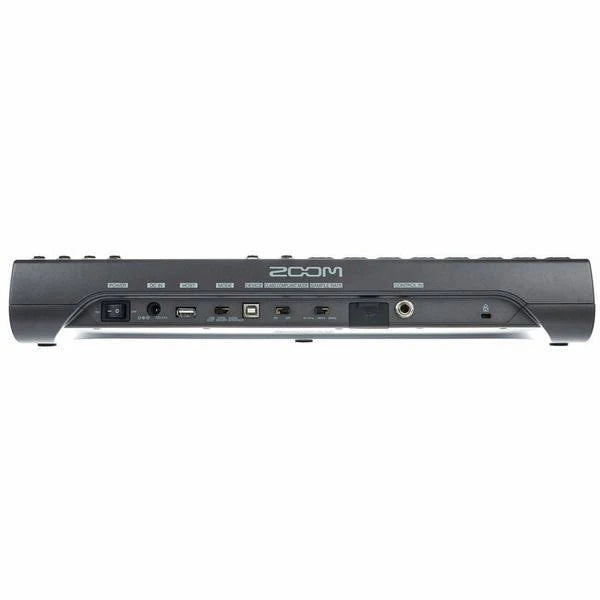

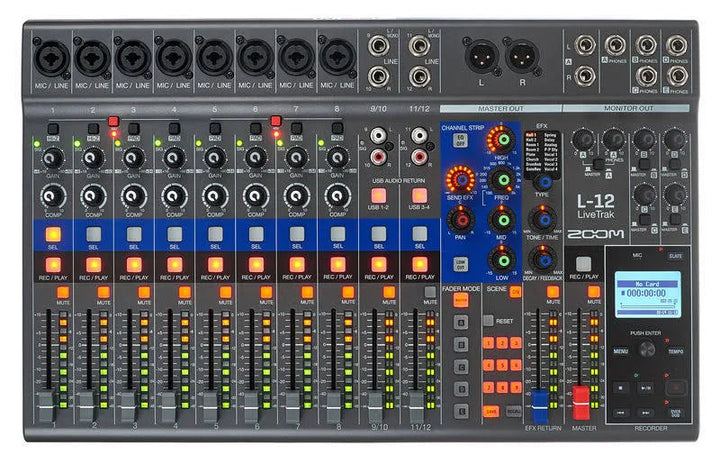

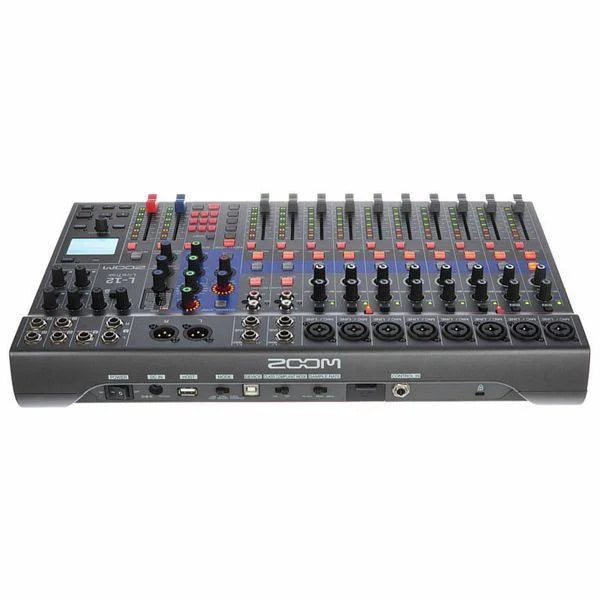

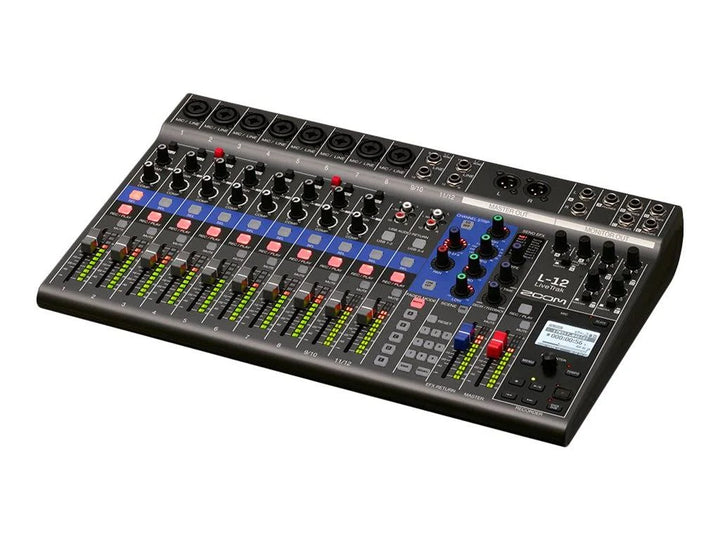

Zoom LiveTrak L-12 Digital Mixer/Recorder (12-In Mixer, 14-Track SD, 5 Custom Monitors) – USB 14×4 Audio Interface

The LiveTrak L-12 keeps small-to-mid sessions simple: 12 inputs (8 mono with one-knob comps + 2 stereo), five custom monitor mixes so every performer hears their own blend, and 14-track recording direct to SD—12 channels + stereo mix—up to 24-bit/96 kHz. Use it as a 14-in/4-out USB interface to your DAW, or record to card while you mix the show. Quiet preamps, hands-on faders, scene recall and onboard FX make it a true all-in-one.

Why you’ll like it

• 12 inputs, ready to gig: 8 mono (with comps) + 2 stereo pairs

• Record 14 tracks to SD: 12 discrete + stereo mix; up to 24-bit/96 kHz

• Five independent monitor mixes: loud, powered headphone outs

• USB interface (14×4): flexible routing, iOS class-compliant mode

• Quiet preamps: up to +60 dB gain, –128 dBu EIN

• Built-in FX: 16 reverbs/delays with adjustable parameters

• Hands-on workflow: faders, mute/solo, scene save/recall, slate mic & click

I/O & channel tools

• Inputs: 8 × XLR/TRS combo (Ch.1–2 Hi-Z, Ch.3–8 26 dB pad), 2 × stereo line (TS + RCA)

• Outputs: Main XLR L/R; Monitor A–E (headphone outs, A also TRS balanced)

• Channel strip: 3-band mid-parametric EQ, low-cut, one-knob compression (Ch.1–8)

• Meters/controls: 12-segment LEDs, Rec/Play per channel, Select for EQ/EFX/pan

Recording & interface

• SD recorder: up to 14-track simultaneous (44.1/48/96 kHz WAV, 16/24-bit)

• USB audio: 14-in / 4-out (44.1/48 kHz), class-compliant for iOS

• Project tools: auto-record, pre-record, USB host & card-reader modes

Key specs

• Phantom power: +48 V (Ch.1–4, 5–8)

• FX engine: 16 types (Hall/Room/Plate/Church/DrumAmb/GateRev/Spring/Delays/Vocal)

• Power: AD-19 (DC 12 V / 2 A), max 17 W

• Size / weight: 445 × 282 × 70.5 mm; 2.53 kg

In the box

• LiveTrak L-12, AD-19 AC adapter, USB 2.0 cable, Quick Guide

Recommended accessories

• RKL-12 rack ears, FS-01 footswitch, CBL-20 carry bag / CBG-11 bag
