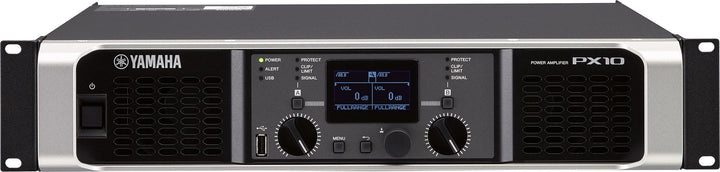

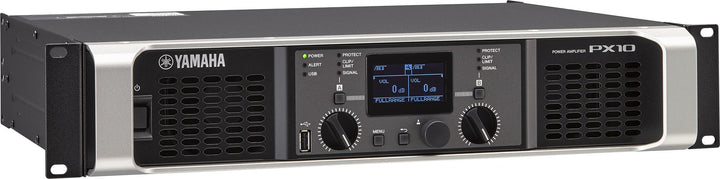

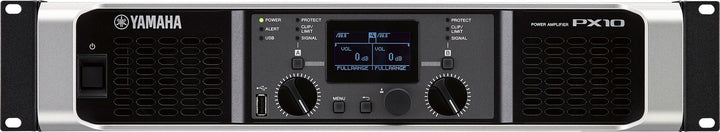

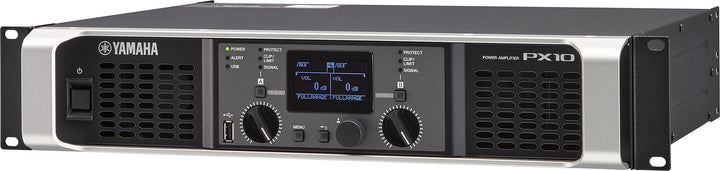

Yamaha PX10 Professional Power Amplifier – 2x1000W Class-D Amp with DSP and Presets (PX10)
Safe and secure checkout
The Yamaha PX10 is a high-powered, DSP-equipped Class-D power amplifier designed for demanding sound reinforcement and installation applications. Delivering 1000W per channel at 8Ω and 1200W per channel at 4Ω, the PX10 balances exceptional output with intelligent signal processing, allowing for clear, controlled audio reproduction. Built using Yamaha’s proprietary digital technology and engineering precision, this amplifier combines robust performance with efficient, intuitive operation.
Key Features
-
Massive Output Power: 2x 1000W at 8Ω, 2x 1200W at 4Ω
-
Class-D Amplifier Design: Custom LSI and PLL for real-time sound control
-
Integrated DSP: Includes crossover, delay, limiter, 6-band PEQ, and D-CONTOUR dynamic processing
-
Flexible Configurations: Amp Mode supports up to 15 routing presets (FULL+FULL, SUB+SUB, Bi-Amp, and more)
-
User-Friendly Interface: LCD display with Basic and Advanced modes for all skill levels
-
Speaker Presets: Includes optimized settings for Yamaha’s passive speaker range (CBR, Club, VXS/VXC, etc.)
-
Smart Setup Wizard: Auto configures crossover and EQ for rapid deployment
-

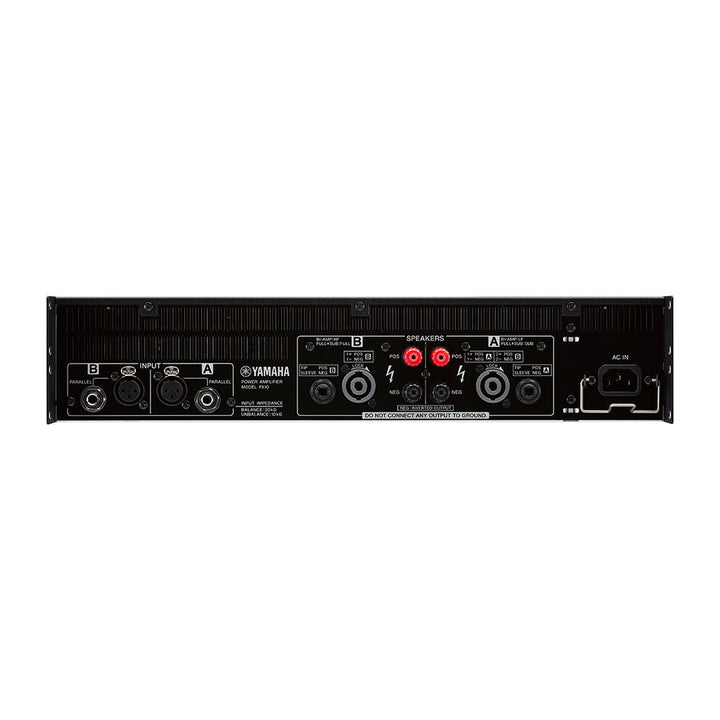

Comprehensive I/O: XLR/TRS inputs, SpeakON, binding post, and phone outputs
-
Rugged Design: Road-ready chassis with front-to-rear airflow and panel lock function
-
USB Functionality: Save/load presets, update firmware, export device logs
Why Choose the Yamaha PX10?
The PX10 is ideal for live sound engineers, venue installers, and AV integrators looking for a reliable amplifier that delivers consistent performance under pressure. Its powerful DSP engine eliminates the need for outboard gear, while its intelligent setup modes cater to both beginners and seasoned professionals. From monitor wedges to FOH systems, the PX10 adapts to any role with ease and ensures optimal speaker protection and audio clarity.
With Yamaha’s decades-long legacy in audio excellence, the PX10 offers peace of mind with built-in safety protections, configurable routing, and detailed real-time monitoring—making it a standout solution for high-demand environments.
Specifications
| Specification | Details |
|---|---|
| Power Output (8Ω) | 2 x 1000W |
| Power Output (4Ω) | 2 x 1200W |
| Amplifier Class | Class-D, BTL architecture |
| DSP Processing | 6-band PEQ, crossover, HPF/LPF, limiter, delay, D-CONTOUR |
| Presets | 8 user presets + Yamaha speaker presets |
| Input Routing Modes | Dual, Parallel, Single, SUM |
| System Config Modes | FULL+FULL, SUB+SUB, FULL+SUB, Bi-Amp, Boost Full, Boost Sub |
| Inputs | 2 x XLR-3-31, 2 x 1/4" TRS |
| Outputs | 2 x SpeakON NL4, 2 x binding post pairs, 2 x 1/4" TS |
| USB Support | Preset save/load, firmware update, data export |
| Frequency Response | ±1.0 dB (20Hz–20kHz, 8Ω) |
| S/N Ratio | 101 dB (A-weighted) |
| Dimensions (W x H x D) | 480 x 88 x 388 mm |
| Weight | 7.4 kg (16.3 lbs) |
| Accessories Included | USB cover, AC cable, Owner's Manual, Spec Sheet |
| Cooling | Dual variable-speed fans (front-to-rear airflow) |
| Latency | 1.5 ms (analog input to speaker output) |
