Description
The Yamaha PSR-E383 is an ideal entry-level keyboard tailored for educational purposes, offering a wide range of features to enhance learning and performance for students of all ages and skill levels.
Product Specifications
-
Keyboard:
- 61 keys
- Organ-style
- Touch-sensitive (Soft, Medium, Hard, Off)
-
Voices and Sounds:
- 650 high-quality instrument voices (including grand piano, guitars, bass, drums)
- 12 Super Articulation Lite Voices
- 258 panel voices, 25 drum/SFX kits, 20 arpeggio, 347 XGlite voices
- 260 auto accompaniment styles
- 125 onboard songs
- 152 arpeggio types
- 41 DSP effects, 15 reverb types, 7 chorus types, 5 master EQ types, 26 harmony types
-
Polyphony:
- 48-note maximum polyphony
-
Display:
- LCD with backlight
- Language: English
-
Dimensions:
- Width: 941 mm (37-1/16”)
- Height: 105 mm (4-1/8”)
- Depth: 317 mm (12-1/2”)
- Weight: 4.4 kg (9 lb, 11 oz) (excluding batteries)
-
Functions:
- 3-Step Lesson: Listening, Timing, Waiting
- Keys to Success lesson functions
- Duo mode for side-by-side practice
- Auto Chord Play and Smart Chord
- Melody Suppressor
- Registration memory (10 memories)
- Metronome
- Tempo range: 11-280
- Transpose: -12 to +12
- Tuning: 427.0–440.0–453.0 Hz
- PIANO button for easy access to grand piano voice
-
Connectivity:
- USB to Host (MIDI/Audio)
- DC IN: 12V
- Headphones jack (standard stereo phone jack)
- Sustain pedal input
- AUX IN (stereo mini jack)
-
Amplifiers and Speakers:
- 2.5W + 2.5W amplifiers
- 12 cm × 2 speakers
-
Power Supply:
- AC adaptor (PA-130 or equivalent recommended by Yamaha)
- Battery operation (6 AA batteries: alkaline, manganese, or Ni-MH rechargeable)
- Power consumption: 5W (with PA-130 AC adaptor)
- Auto power off function
-
Recording and Playback:
- USB audio recording/interface: 44.1 kHz, 16 bit, stereo
- 5-song recording capacity, 2 tracks per song
- Data capacity: approx. 10,000 notes
- Playback: SMF formats 0 & 1
- Recording: original file format
-
Storage:
- Internal memory: approx. 1.4 MB
-
Included Accessories:

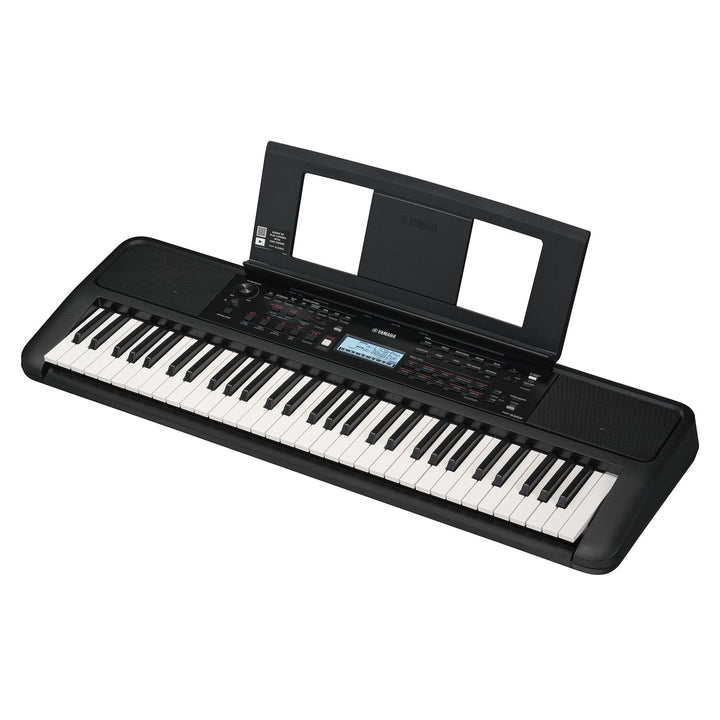

- Music rest
- Downloadable songbook from Yamaha website
Educational Features
-
Expressive Touch Response:
- Vary the dynamics by playing keys with different strengths, making learning more expressive and engaging.
-
Lesson Modes:
- Built-in 3-step lesson mode helps students practice with either hand or both hands, evaluating progress for enhanced practice sessions.
-
Auto Accompaniment:
- Style features add rhythm, bass, and chords automatically, simulating a full band accompaniment.
-
Keys to Success:
- Structured lessons guide students from basic techniques to more advanced playing, ensuring a comprehensive learning path.
The Yamaha PSR-E383 is designed to provide an enriching learning experience for students, combining versatile features with user-friendly functions to facilitate musical education and enjoyment.
