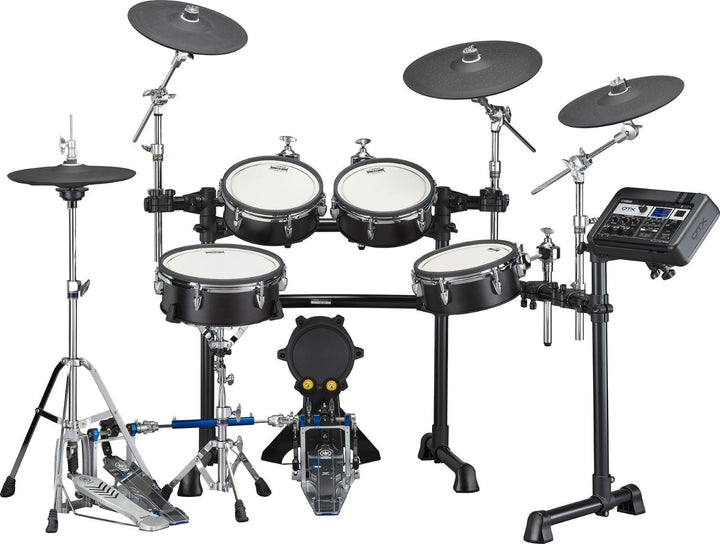

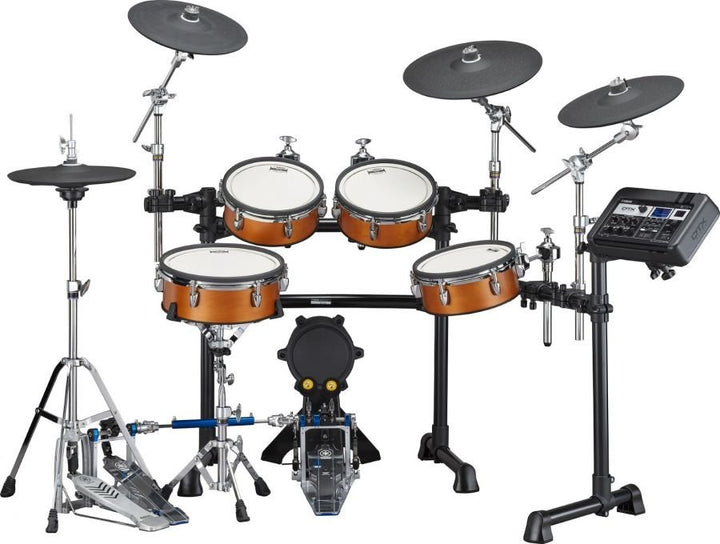

Yamaha DTX8K-X E-Drum Set In Various Colours

The Yamaha DTX8K-X Electronic Drum Kit, TCS Heads, offers a professional and authentic drumming experience. Its advanced features, such as AMBIENCE, COMP, and EFFECT Kit Modifier knobs, allow for customization of unique sounds. The snare and tom pads use Yamaha's TCS heads, providing a natural feel and rebound. The kit is built with beautiful wood shells from Yamaha's acoustic drum factories and features two playing zones on snare/tom/hi-hat pads and three zones on cymbal pads. The DTX8K-M is the newest addition to Yamaha's E-Drums range, promising top-of-the-line sounds and features for players of all levels. Its mesh head pads are made with real Yamaha birch drum shells, finished in elegant Black Forest and Real Wood. The DTX-PRO Drum Trigger Module offers high-quality audio with samples recorded in top European studios. Users can also customize their sound with a variety of studio effects and load their own samples.

Superbly Playable

Reproducing the way a drum behaves when struck is a key factor in the playability of electronic drums.

Yamaha has undertaken an exhaustive investigation of how drums respond when hit, leveraging this information to achieve a truly faithful representation of instrument behavior. Moreover, professional drummers from around the world have evaluated the performance of the DTX-PRO, allowing Yamaha to improve its expressive capabilities still more. Yamaha’s expertise as a manufacturer of music hardware has allowed them to offer combinations of expertly crafted modules and pads that deliver superb playability.

Same tone generator as the flagship series

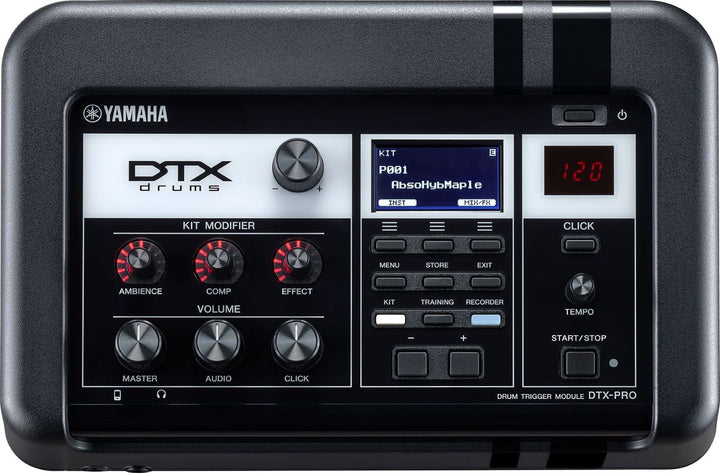

The DTX-PRO sound module of the DTX8 series has the exact same sound engine that is found on the flagship DTX-PROX module. Each module is capable of stunning sound quality. Choosing the correct trigger setting* to suit the pads being used will allow you to enjoy the sounds to the max.

*The configuration screen is displayed upon initial startup.

Reliable Yamaha Hardware

The DTX8 series uses Yamaha drum hardware that is highly trusted by professional drummers all over the world.

Easy-to-adjust ball clamps have been adopted for the toms, while the unique boom-retractable tilter design of the cymbal holders allows them to be used straight or as booms. Snare and hi-hat stands are also included and support the player with typical Yamaha robustness, playability, and stability.

An extensive range of training functions to support drummers

Professional grade headphone amp

Yamaha realize that it is incredibly important that drummers can hear themselves clearly, so the DTX-PRO module comes equipped with a high precision, low distortion, low noise, and high-power headphone amplifier. This circuitry delivers high-fidelity sound directly to the player, has been developed exclusively for electronic drums, and it envelops the player in a realistic drumming sound stage.

Includes Cubase AI

The DTX-PRO comes with a download code for the latest version of "Cubase AI" the powerful music production software.

By connecting the DTX-PRO to your computer with a USB cable, all recording, editing, and mixing tasks that are found in modern music production, can be handled by the one software program.

Yamaha DTX8K-X E-Drum Set

Snare: XP125SD-X (12-inch TCS pad with 2 zone)
Tom Pad: XP105T-X (10-inch TCS pad with 2 zone)
Floor Tom Pad: XP105T-X (10-inch TCS pad with 2 zone)
Kick Pad: KP90 (7.5-inch rubber pad with Multilayer cushion)
Hi-hat Pad: RHH135 (13-inch pad with 2 zone)
Crash cymbal 1: PCY135 (13-inch pad with 3 zone)
Crash cymbal 2: PCY135 (13-inch pad with 3 zone)
Ride cymbal: PCY155 (15-inch pad with 3 zone)
Hi-hat Stand: HS650A
Kick Pedal- NOT INCLUDED - Image as an example only
Footprint (average): 1,100 mm x 1,500 mm
Weight: 45.88 kg
Snare Stand: SS662 (Snare Stand for 12")
Width: 303 mm (11-15/16 in)
Tone Generator - Height: 196 mm (7-11/16 in)
Depth: 66 mm (2-5/8 in)
Weight: 1.5 kg (3 lb 5 oz)
Maximum Polyphony: 256 notes
Effects: For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst.
Drum kits: Preset: 40 Kits, User: 200 Kits
Voices: 712
Click Sets: 30
Tempo: 30 to 300 BPM, Tap Tempo supported.
Time signatures: 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
Subdivisions: Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets
Others: Individual click volume control, wav import, timer
Training Types: 10
Songs: Preset: 37 songs, User: 1 song
Audio Files - Import limit: 1,000 files
Maximum loadable sample time: 760 seconds (44.1 kHz, 16-bit, mono), 380 seconds (44.1 kHz, 16 bit, stereo)
Sample Format: WAV
Recording time Internal memory: Maximum of 90 seconds
Recording time USB flash drive: Maximum of 90 minutes per file
Format: Record/playback: WAV (44.1 kHz, 16-bit, stereo)

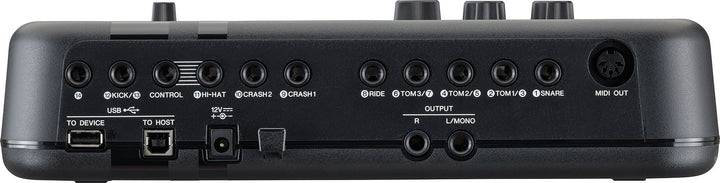

Connectors
DC IN: DC IN (+12V)
Headphones: Headphones (standard stereo phone jack × 1)
AUX IN: AUX IN (stereo mini jack × 1)
Output: OUTPUT L/MONO, R (standard phone jack, one for each)
USB: USB TO DEVICE, USB TO HOST
MIDI: MIDI OUT
Trigger Input: Trigger input jack ×10 (standard stereo phone jack, not including the HI-HAT CONTROL jack. 1, 14 for All type of pad, 2, 4, 6 for 2zone, 8, 9, 10 for 3zone, 11 dedicated for hi-hat pad/controller, 12 for kick, 2zone) *If other pad is connected to each of the above terminals, it will operate as a 1-zone pad. *Maximum 14 of pads to be connected (when Y-cable is used)
Display: Full Dot LCD (128×64 dot)
Accessories: AC adaptor (PA-150 or an equivalent recommended by Yamaha) *2, Owner’s Manual, module holder, module holder wing bolts (x 4), Cubase AI Download Information *2 May not be included depending on your area. Check with your Yamaha dealer.
