Yamaha DTX10K-X E-Drum Set

The DTX10 series is the flagship of the DTX drum line, offering a perfect blend of electronic and acoustic drums. With our patented TCS heads, you'll experience the same natural feel and rebound as traditional drums. The beautiful wood shells, built and finished at our acoustic drum factories, add to the overall aesthetic. Faithfully reproducing real drum sounds and room ambience recorded in prestigious studios, the DTX10 also features Kit Modifier knobs for creating unique sounds and LED rotary faders for quick and accurate adjustments. With individual outputs, AUX inputs for PA monitors, and a USB port for audio data, this professional Yamaha system hardware is perfect for both studio and live performances.



Superbly Playable

Reproducing the way an acoustic drum behaves when struck is a key factor in the playability of electronic drums. Our electronic drums feature a sound module that captures and reproduces the full range of sound from the initial attack to the final cut-off, all based on samples of authentic drums tuned by skilled engineers and drummers. Yamaha has undertaken an exhaustive investigation of how drums respond when hit, leveraging this information to achieve a truly faithful representation of drum kit behaviour. Moreover, professional drummers from around the world have evaluated the performance of the DTX-PROX, allowing Yamaha to improve its expressive capabilities still more. Yamaha’s expertise as a manufacturer of musical hardware has allowed us to offer combinations of expertly crafted modules and pads that deliver superb playability.

Original TCS heads

Yamaha TCS (Textured Cellular Silicone) heads use a foam silicone material that contains numerous air bubbles, providing accurate firmness and rebound. The air bubbles inside serve as a cushion, softening the impact sound and reducing strain on wrists and elbows. The head surface is just like that of a coated head, and prevents the sticks from sliding.

Additionally, a unique floating structure is employed to prevent the head and body parts from coming into direct contact. No vibration is transferred to other parts of the head, and thus quietness and sensitivity are improved.

Live Set function that instantly recalls settings

The DTX-PROX is equipped with a "Live Set" function allows you to freely arrange and set various combinations of kits, tempos, and audio files or backing tracks, and recall them with a single touch, making it particularly useful for live venues or for live streaming events. It also allows for various setups, including the Wav & Click Sync function that adds click settings to audio files and follows them for playback, adds a pre-count, and stops the click after a pre-arranged time.

Connect to Bluetooth and record performances to USB memory

The Bluetooth function of DTX-PROX allows you to wirelessly connect to smart devices, portable music players, and computers and have fun playing drums along with the audio. Furthermore, USB memory can be used to record audio from not only devices connected via Bluetooth, but also devices connected by AUX or USB cables. You can also record your own drum performances over the songs being played.

*Availability of Bluetooth audio varies by country.

Professional grade headphone amp

Yamaha realize that it is incredibly important that drummers can hear themselves clearly, so the DTX-PROX module comes equipped with a high precision, low distortion, low noise, and high-power headphone amplifier. This circuitry delivers high-fidelity sound directly to the player, has been developed exclusively for electronic drums, and it envelops the player in a realistic sound stage.

Connections for every possible application

The DTX-PROX is equipped with 8 INDIVIDUAL OUTPUTS and a matrix that allows routing to any output. The two AUX IN sockets are ideal for receiving monitor sound from a PA system, connecting to other musical instruments (rear side), or connecting to smart devices (front side). The DTX-PROX offers both a standard jack and a mini jack headphone outputs, allowing for highly flexible routing, such as outputting clicks and AUX IN sounds only to the headphones.

The USB port can be directly connected to a computer or smart device to send and receive audio data and MIDI.

An extensive range of training functions to support drummers

The best practice functions featured in previous DTX models are also found in the DTX-PROX. As well as the sophisticated programmable metronome, the module offers a comprehensive recorder function, 10 training functions that are ideal for players of all standards, as well as 37 training songs that allow you to learn various genres. All drummers will find the DTX10 training functions a useful aid for daily practice.

Includes Cubase AI

The DTX-PROX comes with a download code for the latest version of "Cubase AI" the powerful music production software.

By connecting the DTX-PROX to your computer with a USB cable, all recording, editing, and mixing tasks, that are found in modern music production can be handled by the one software program.

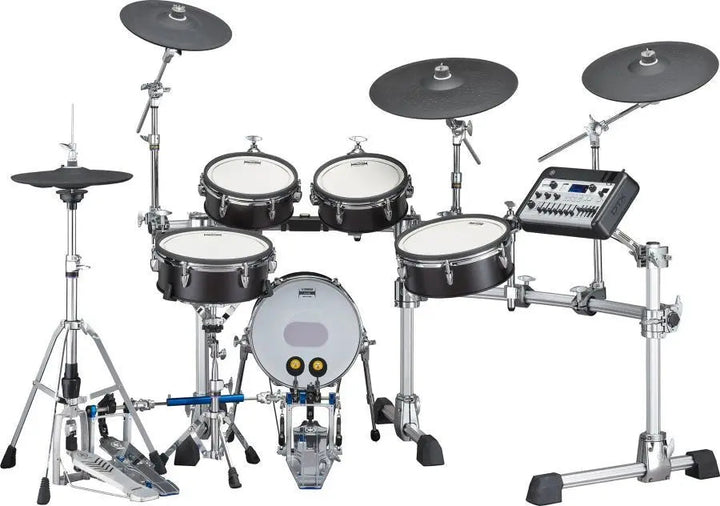

Yamaha DTX10K-X in Black Forest Finish & Real Wood Finish

Snare: XP125SD-X (12 inch TCS pad with 2 zone)
Tom Pad: XP105T-X (10 inch TCS pad with 2 zone)
Floor Tom Pad: XP125T-X (12 inch TCS pad with 2 zone)
Kick Pad: KP128 (12-inch Mesh pad with Multilayer cushion)
Hi-hat Pad: RHH135 (13-inch pad with 2 zone)
Crash cymbal 1: PCY135 (13-inch pad with 3 zone)
Crash cymbal 2: PCY155 (15-inch pad with 3 zone)
Ride cymbal: PCY175 (17-inch pad with 3 zone)
Hi-hat Stand: HS740A
Kick Pedal- NOT INCLUDED- Image as an example only
Footprint (average): 1,100 mm x 1,600 mm
Weight: 46.77 kg
Snare Stand: SS662 (Snare Stand for 12")

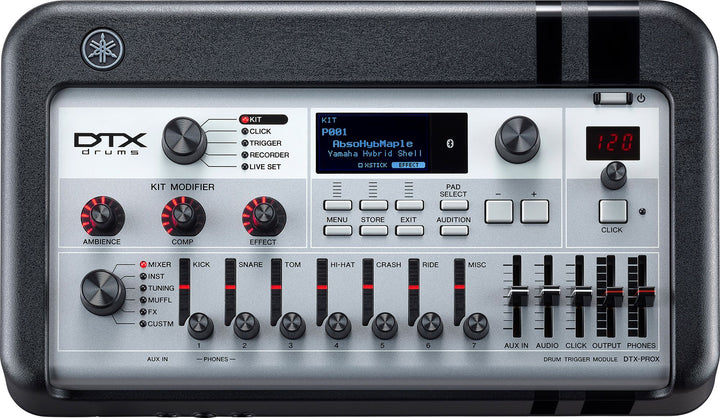

Tone Generator – Width: 342 mm (13-7/16 in)
Height: 196 mm (7-11/16 in)
Depth: 66 mm (2-5/8 in)
Weight: 2.0 kg (4 lb 7 oz)
Maximum Polyphony: 256 notes
Effects: For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst.
Drum kits: Preset: 70 Kits, User: 200 Kits
Voices: 733
Click Sets: 30
Tempo: 30 to 300 BPM, Tap Tempo supported. Voice Guide
Time signatures: 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
Subdivisions: Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets
Others: Individual click volume control, wav import, timer
Training Types: 10
Songs: Preset: 37 songs, User: 1 song
Audio Files - Import limit: 1,000 files
Maximum loadable sample time: 50 minutes 40 seconds (44.1 kHz, 16 bit, mono), 25 minutes 20 seconds (44.1 kHz, 16 bit, stereo)
Sample Format: WAV
Recording time Internal memory: Maximum of 90 seconds
Recording time USB flash drive: Maximum of 90 minutes per file
Format: Record/playback: WAV (44.1 kHz, 16-bit, stereo)

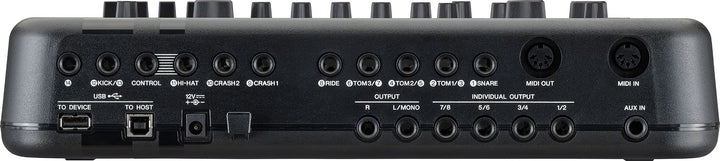

Connectors
DC IN: DC IN (+12V)
Headphones: Headphones (standard stereo phone jack ×1, stereo mini jack ×1)
AUX IN: AUX IN (stereo mini jack ×1, stereo standard phone jack ×1)
Output: OUTPUT L/MONO, R (standard phone jack, one for each), INDIVIDUAL OUTPUT 1/2, 3/4, 5/6, 7/8 (stereo standard phone jack, one for each)
USB: USB TO DEVICE, USB TO HOST
MIDI: MIDI OUT ×1, MIDI IN ×1
Trigger Input: Trigger input jack ×10 (standard stereo phone jack, not including the HI-HAT CONTROL jack. 1, 14 for All type of pad, 2, 4, 6 for 2zone, 8, 9, 10 for 3zone, 11 dedicated for hi-hat pad/controllar, 12 for kick, 2zone) *If other pad is connected to each of the above terminals, it will operate as a 1-zone pad. *Maximum 14 of pads to be connected (when Y-cable is used)
Bluetooth: Audio (varies by country)
Display: Full Dot LCD (128×64 dot)
Accessories: AC adaptor (PA-150 or an equivalent recommended by Yamaha (Output : DC 12V, 1.5 A))(*2), Owner’s Manual , module holder, module holder wing bolts (× 4), Cubase AI Download Information (*2) May not be included depending on your area. Check with your Yamaha dealer.

Product ID JDTX10KX-SUPER
