W Audio DQM 800H Quad Handheld UHF Radio Microphone System (823Mhz-865Mhz) - Professional Wireless Mic Set

£369.00
Add to Wishlist

Safe and secure checkout

apple paygoogle paymaestromasterpaypalshopify payvisa
Ask a Question
SKU: MIC82
Availability : In Stock Available from Supplier Out of stock
Tags: CH65 & CH70 Bands Event Audio Equipment Professional UHF Mic System Quad Wireless Microphone Rack-Mount Receiver Stage Mic Set W Audio DQM 800H Wireless Vocal Microphone System
Description

The W Audio DQM 800H Quad Handheld UHF Radio Microphone System is a premium wireless solution designed for professional applications. Featuring a full-width 1U rack-mount receiver, ergonomic handheld transmitters, and reliable UHF transmission, this system ensures superior sound quality and stable performance. With 99 selectable frequencies and compatibility with license-free CH65 and CH70 bands, it is ideal for stage performances, events, and professional use.

Key Features

  • Professional Wireless Performance:
    • UHF band with Phase Lock Loop (PLL) for stable RF transmission.
    • 99 selectable frequencies spanning 823-832MHz (CH65) and 863-865MHz (CH70).

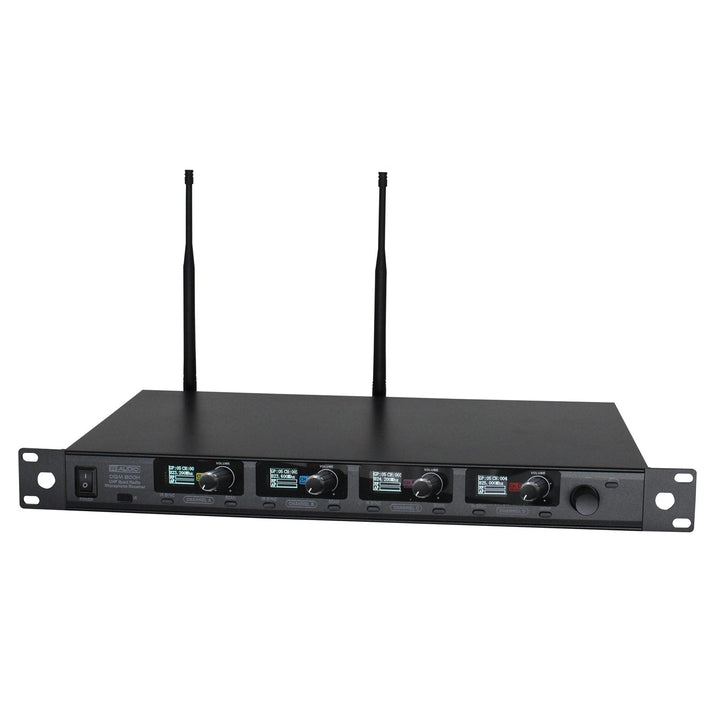

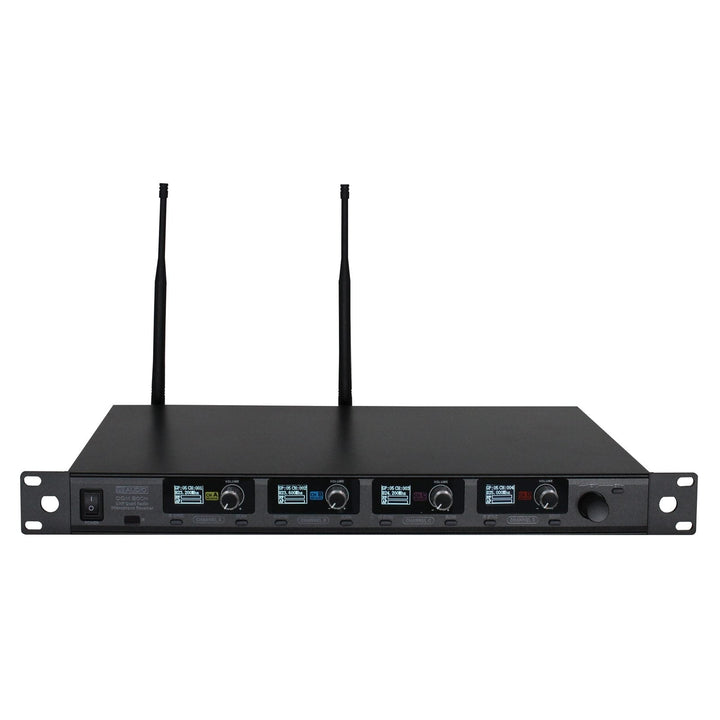

  • Receiver Highlights:
    • 1U rack-mountable metal housing with integrated brackets.
    • OLED display for clear visibility of frequency, channel, RF/AF signal strength, and menu settings.
    • Built-in antenna splitter to reduce RF interference.

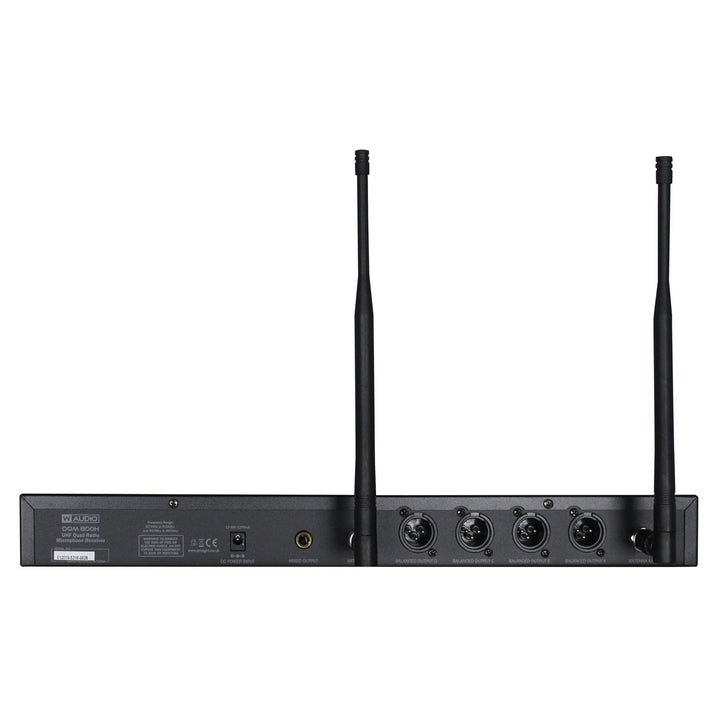

    • Balanced XLR outputs for each channel and unbalanced mixed output.
    • Automatic frequency scan and IR synchronization for fast setup.

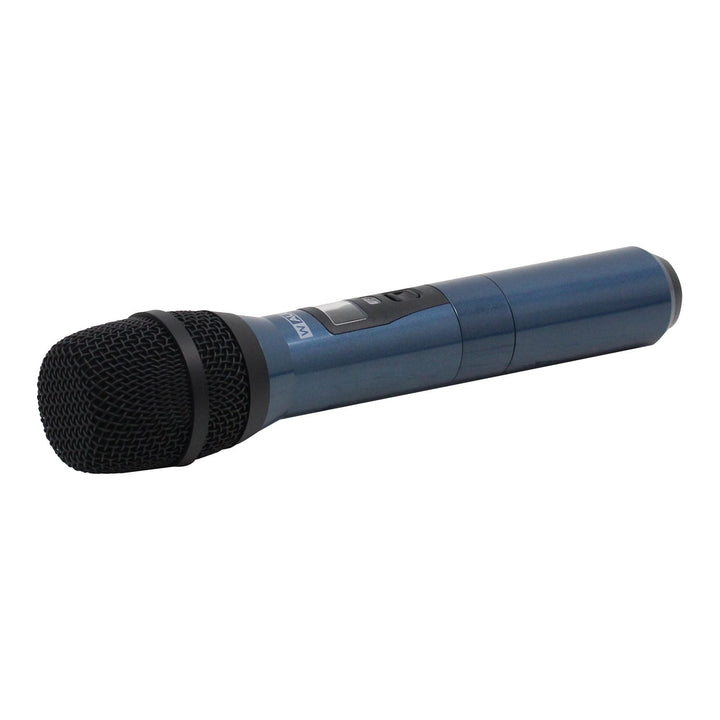

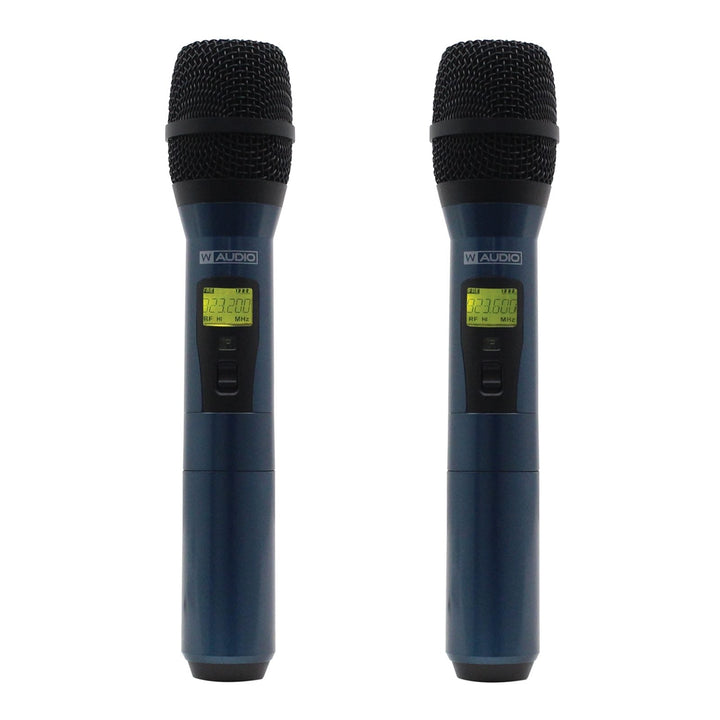

  • Handheld Transmitter:
    • Dynamic cardioid microphone capsule for outstanding vocal clarity.
    • Ergonomic design to withstand rigorous professional use.
    • Powered by 2 x 1.5V AA batteries (not included).

Specifications
Receiver:

  • Power Supply: 14V DC (mains adapter supplied)
  • Dimensions: 45 x 482 x 260mm
  • Weight: 2.3kg

Handheld Transmitter:

  • Battery Configuration: 2 x 1.5V AA (not included)
  • Dimensions: 250 x 45 x 45mm
  • Weight: 0.4kg

Audio and Transmission:

  • Frequency Response: 50Hz–16kHz
  • Dynamic Range: 96dB
  • Audio Output Level: 400mV

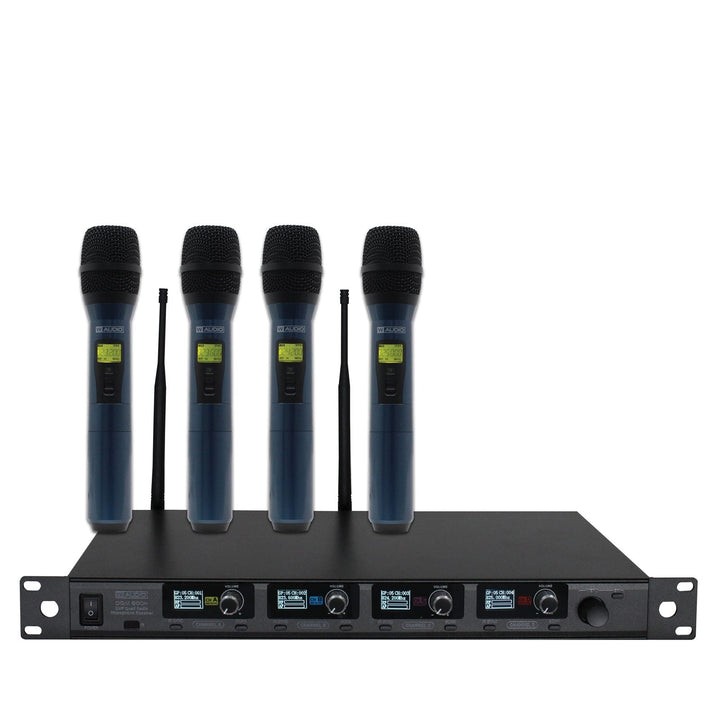

Included in the System:

  • 1 x Receiver
  • 4 x Handheld Transmitters
  • 2 x Removable Antennas
  • 2 x Antenna Extension Cables
  • 1 x 14V 1.2A Mains PSU

Packed Information:

  • Dimensions (H x W x D): 30 x 54 x 12.5cm
  • Packed Weight: 4.9kg

Why Choose the W Audio DQM 800H System?

  • Reliable Performance: Stable UHF transmission ensures uninterrupted audio for professional events.
  • Flexible Setup: 99 selectable frequencies with automatic scanning and IR synchronization for easy operation.
  • High-Quality Audio: Crystal-clear sound reproduction for vocals and instruments.
  • Durable and Portable: Ergonomic transmitters and rack-mountable receiver ideal for on-the-road use.
  • Expandable System: Supports up to 8 transmitters simultaneously when manually configured.
