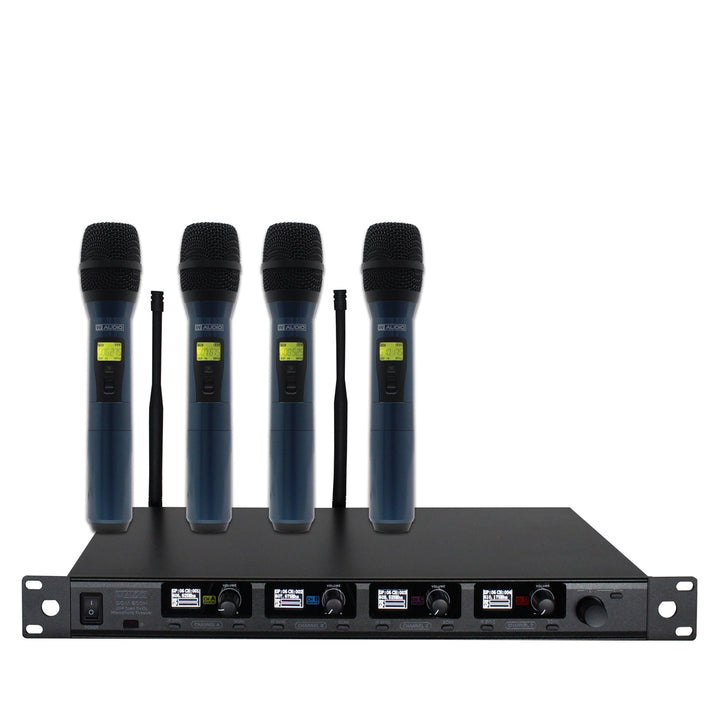

W Audio DQM 600H Quad Handheld UHF Radio Microphone System - Channel 38

The DQM series wireless microphones represent quad UHF handheld systems crafted specifically for professional use. They boast a full-width receiver ensuring top-notch RF stability, operating within an 8MHz tuning bandwidth in the 606-614MHz CH38 band. These systems excel in delivering pristine sound quality, unwavering reliability, and exceptional vocal reproduction, offering secure wireless connectivity for seamless stage movement. The handheld transmitters are designed ergonomically within a rugged rackmount housing, built to endure the demands of touring.

For added versatility, the handheld systems can be expanded by acquiring the DQM belt pack kit, allowing customization with a combination of up to four transmitters—be it handheld, head-worn, or lavalier.

Key features include:

• UHF band with Phase Lock Loop (PLL) ensuring steady RF transmission.
• Preset frequency groups alongside user-defined frequency groups to fine-tune each channel's operating frequency.
• An OLED display providing excellent visibility even in dimly lit environments.
• Displays for Frequency, Channel, RF, and AF signal strength meters.
• Intuitive jog wheel button operation for swift menu navigation.
• 1U rack metal housing equipped with integrated brackets and an antenna cable interface for front-mount antennas.
• Integrated antenna splitter for reduced RF interference.

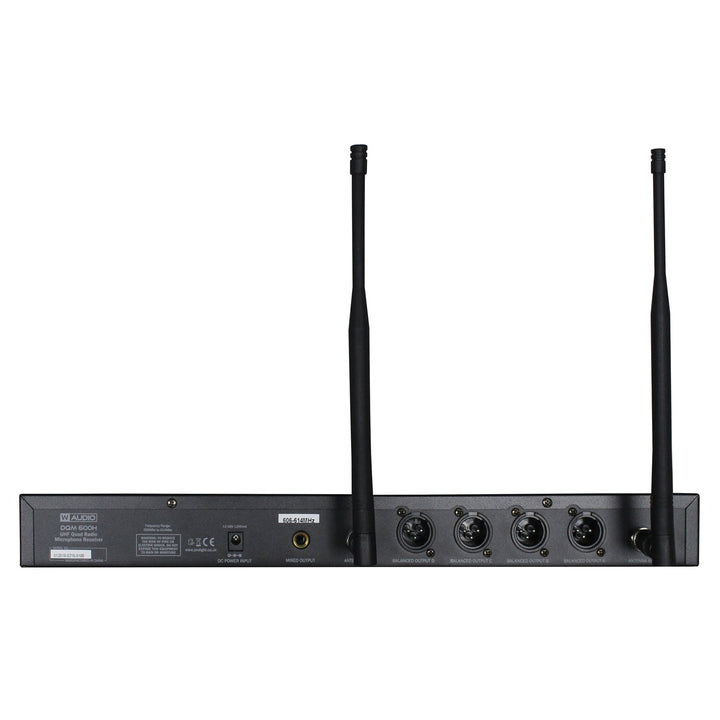

• Balanced XLR output for each channel alongside an unbalanced mixed output.
• Automatic frequency SCAN function.
• IR infrared frequency synchronization via an infrared interface.
• Mute circuitry for minimized noise.
• Flat frequency response ranging from 50Hz to 16KHz.

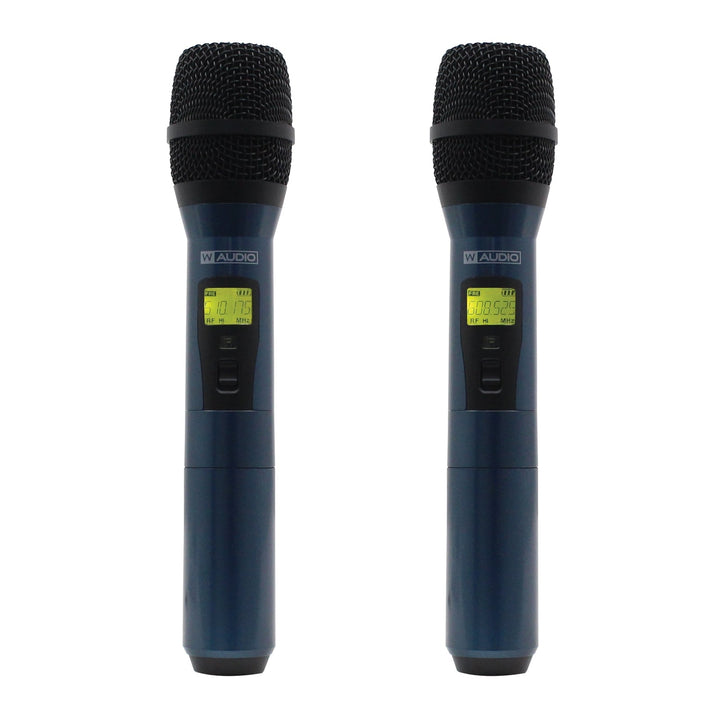

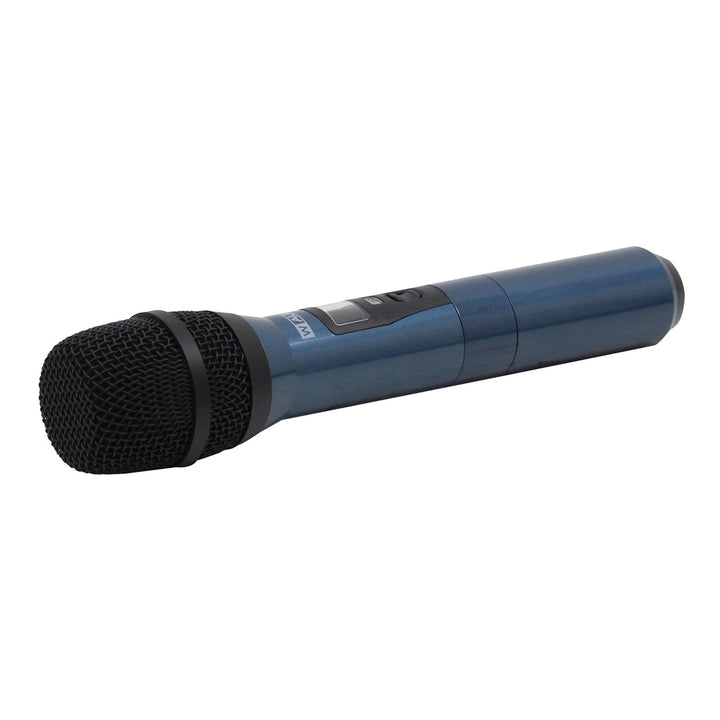

• Equipped with a dynamic, cardioid handheld microphone capsule.

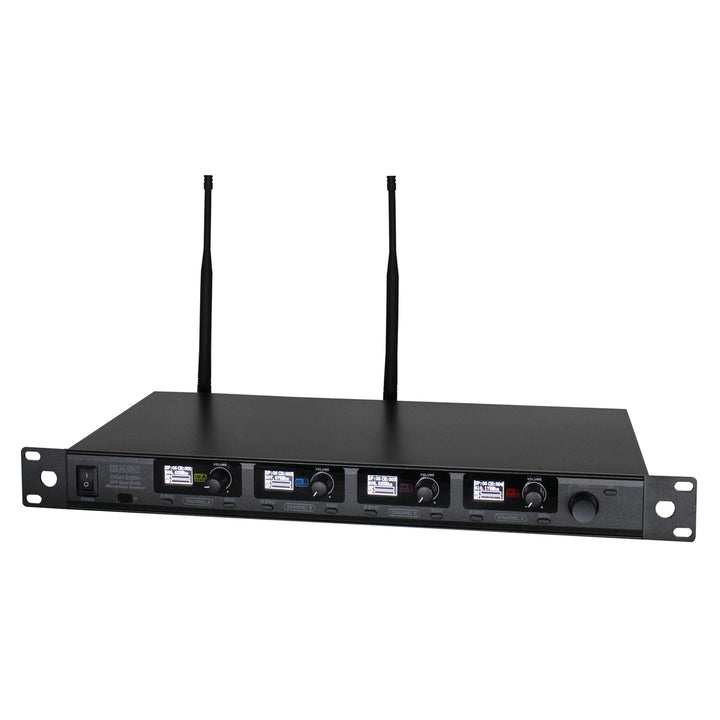

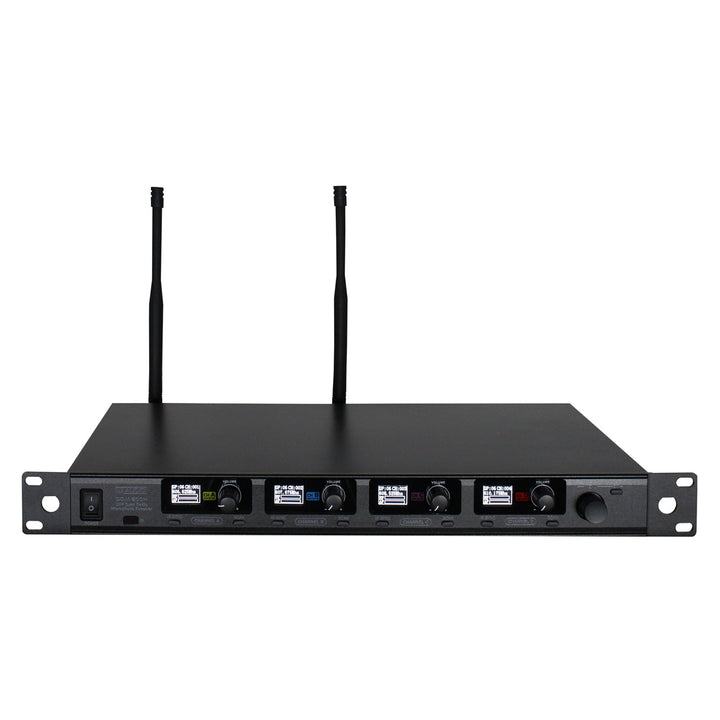

• 1U full-width rack mount receiver.
• Capability to use up to eight DQM transmitters simultaneously when manually configured (one 800MHz and one 600MHz).
