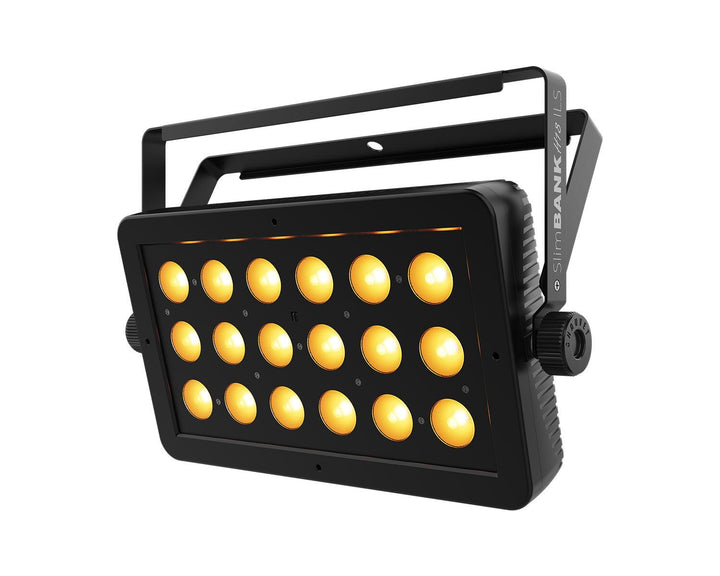

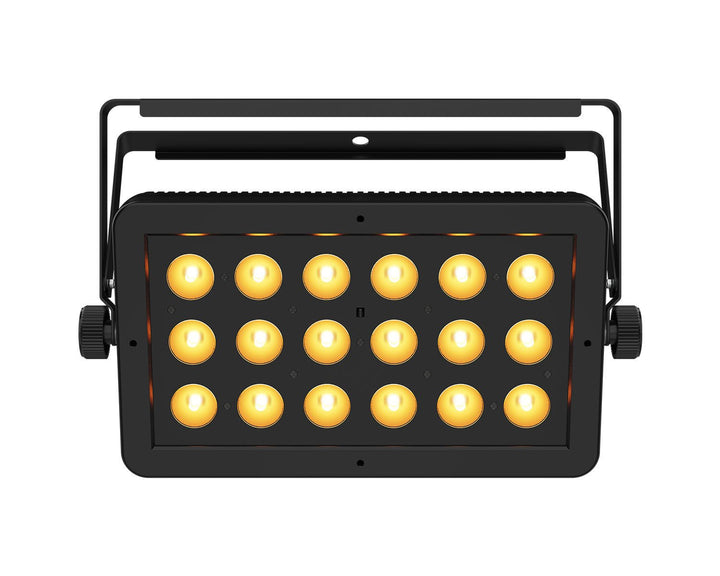

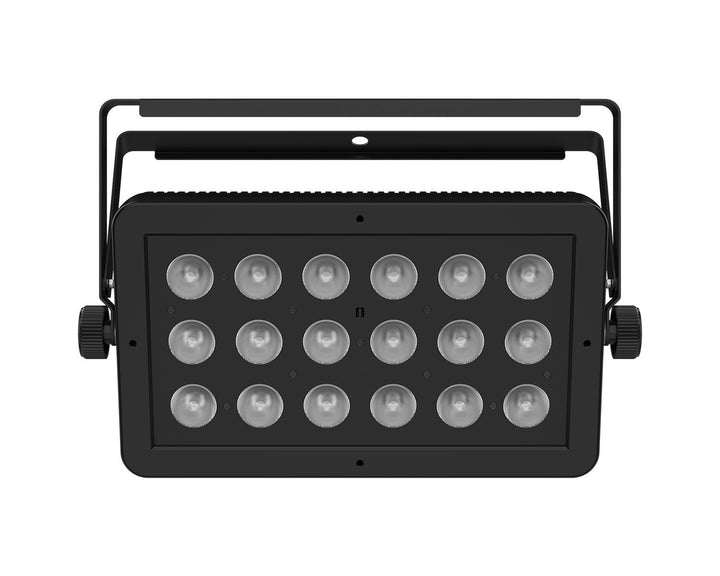

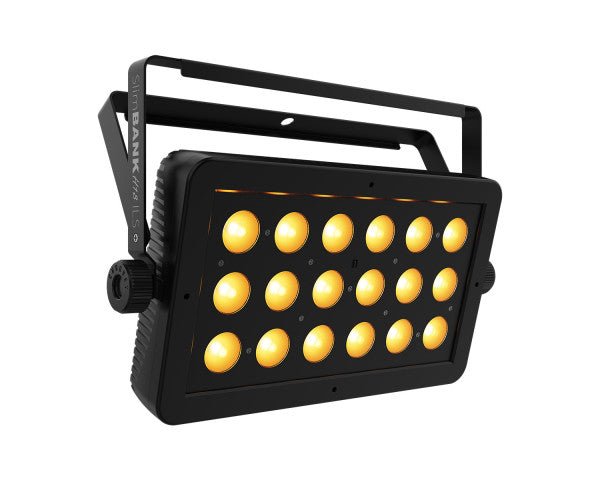

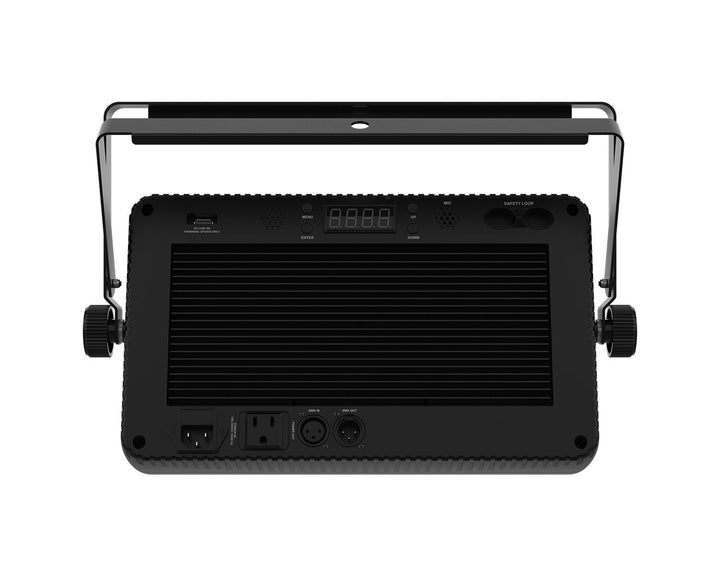

SlimBANK H18 ILS Washlight with 18x6.2W RGBAW+UV LEDs

The SlimBANK H18 ILS is a versatile LED wash light designed for creating dynamic lighting effects. Featuring 18 hex-color RGBAW+UV LEDs, this wash light delivers vibrant colors and smooth transitions, making it ideal for various lighting setups. Its ILS compatibility allows seamless integration with other fixtures in the ILS ecosystem.

Product Features:

• LED Technology: Equipped with 18 hex-color RGBAW+UV LEDs, providing a broad color spectrum and vivid effects.
• ILS Compatibility: Integrates easily with the ILS ecosystem for coordinated lighting displays.
• Auto Programs: Built-in auto programs with sectional control simplify the creation of complex lighting looks.

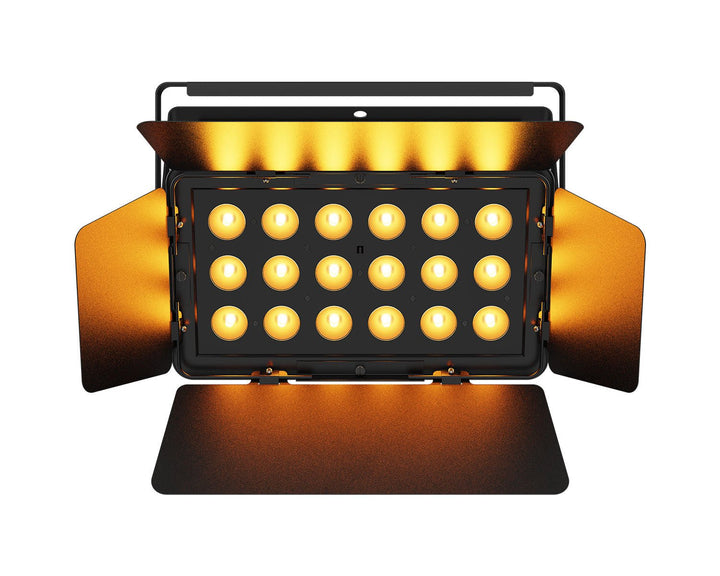

• Adjustable Barn Doors: Allows for precise control and direction of light output.
• Control Options: Can be operated via IRC-6 remote, Master/Slave, DMX, or ILS.
• Dimming Curves: Features smooth LED fading with adjustable dimming curves.
• Cooling Design: Fan-free radiant cooling system suitable for sound-sensitive environments.
• Power Linking: Connect multiple units without additional extension cords for convenience.

Product Specifications:

• DMX Channels: 6, 8, 12, or 22
• DMX Connectors: 3-pin XLR
• Light Source: 18 LEDs (hex-colour RGBAW+UV) 6.2 W each, 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 27°
• Field Angle: 43°
• Illuminance: 3,111 lux @ 2 m
• Lumens: 3,356
• Power Linking: 8 units @ 120 V; 14 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 68 W, 1 A @ 120 V; 67 W, 0.5 A @ 230 V
• Weight: 6 lb (2.7 kg)
• Dimensions: 8.2 x 14 x 2.2 in (208 x 355 x 55 mm)
• Approvals: CE, RoHS
• Optional Controllers: IRC-6, ILS Command
• Bracket Mounting Hole: 13 mm

What's in the Box:

• SlimBANK H18 ILS Washlight
• Power Cord
• Barn Doors
• Quick Reference Guide
