Sennheiser EW500 G4-GBW Lapel System with MKE2 Omni Lapel Mic CH38

£899.00
Add to Wishlist

Safe and secure checkout

apple paygoogle paymaestromasterpaypalshopify payvisa
Ask a Question
SKU: SENEW500MK38
Availability : In Stock Available from Supplier Out of stock
Tags: Lapel Lavalier
Description

The Sennheiser EW500 G4-GBW lapel microphone system is designed for professional use in live sound environments. Operating in the 606-678 MHz range (CH38), this system offers reliable performance with advanced features for multi-channel setups.

Product Features:

  • True Diversity Receiver: Half-rack unit with a metal housing and OLED display for easy control.
  • Flexible Synchronization: Infrared sync between transmitter and receiver.
  • High Channel Capacity: Supports up to 32 channels and up to 88 MHz bandwidth.
  • Wide Frequency Range: 3520 selectable frequencies for stable UHF operation.
  • Ethernet Connection: Compatible with Wireless Systems Manager (WSM) for advanced frequency coordination.
  • Adjustable RF Power: Up to 50 mW, adjustable in 10, 30, or 50 mW steps.

Specifications:

  • Frequency Range: 606 - 678 MHz (CH38)

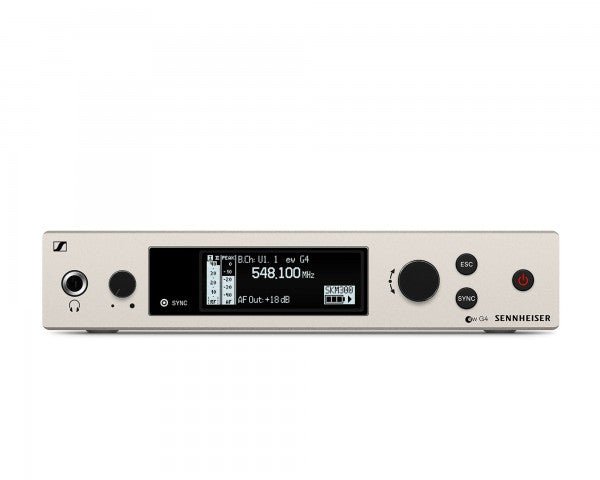

  • Receiver (EM 300-500 G4):
    • Modulation: Wideband FM
    • Frequency Response: 80 - 18,000 Hz
    • Signal-to-Noise Ratio: ≥ 115 dBA
    • Total Harmonic Distortion: ≤ 0.9%
    • Dimensions: 43 mm (H) x 212 mm (W) x 202 mm (D)
    • Weight: 980 g
    • Power Supply: 12 V DC
    • Current Consumption: 350 mA

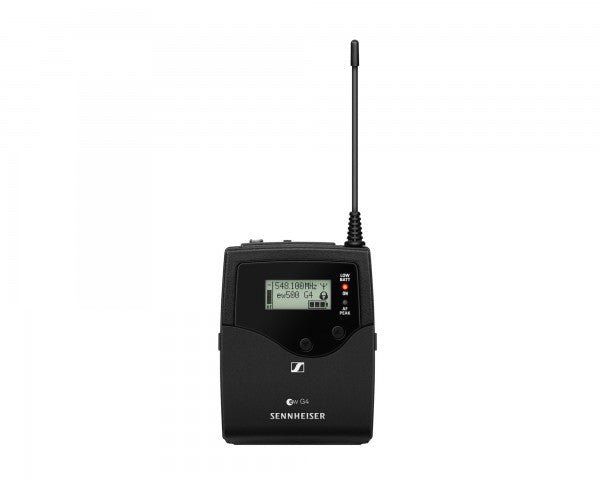

  • Transmitter (SK 500 G4):
    • Modulation: Wideband FM
    • Frequency Response: Mic: 80 - 18,000 Hz
    • Signal-to-Noise Ratio: ≥ 115 dBA
    • Total Harmonic Distortion: ≤ 0.9%
    • Dimensions: 82 mm (H) x 64 mm (W) x 24 mm (D)
    • Weight: 160 g
    • Power Supply: 2 AA batteries or BA 2015 accupack
    • Operating Time: Approximately 8 hours

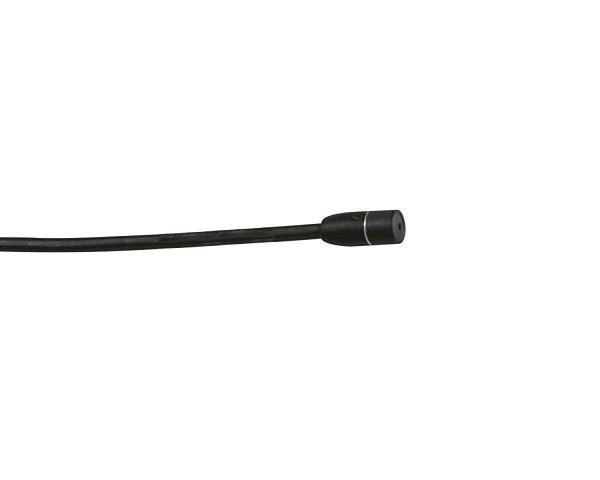

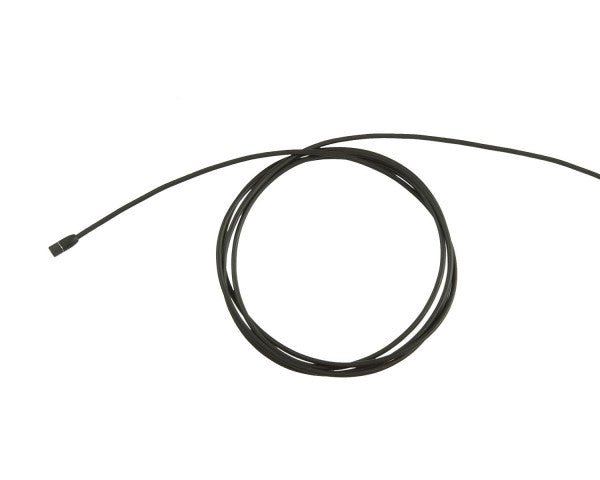

  • Microphone (MKE 2):
    • Frequency Response: 20 - 20,000 Hz
    • Transducer Principle: Pre-polarized condenser
    • Pick-up Pattern: Omni-directional
    • Sensitivity: 5 mV/Pa ± 3 dB
    • Nominal Impedance: 1000 Ω
    • Maximum SPL: 142 dB
    • Operating Voltage: 7.5 V

Included in the Box:

  • EM 300-500 G4 true diversity receiver
  • SK 500 G4 bodypack transmitter
  • MKE 2 clip-on microphone
  • GA 3 rackmount set
  • 2 AA batteries
  • 2 rod antennas
  • Power supply
  • Quick guide
  • Safety guide
  • Manufacturer declaration sheet
