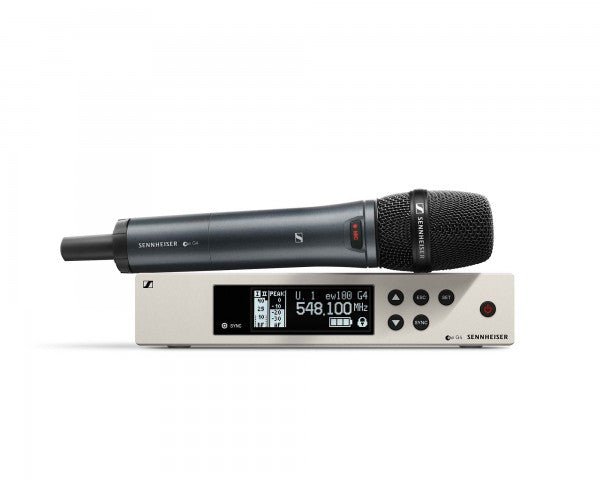

Sennheiser EW100 G4-GB Handheld Mic System with 935S Cardioid Transmitter (CH38)

The Sennheiser EW100 G4-GB handheld microphone system delivers professional audio performance with the e 935 capsule. It operates on the 606-648 MHz range (CH38) and is designed for high-quality live sound applications.

Product Features:

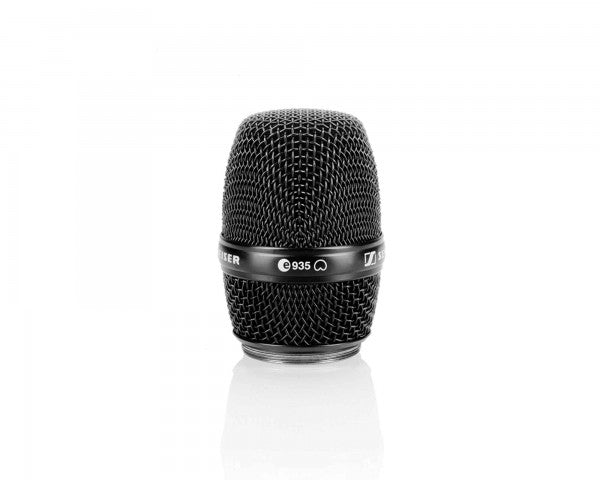

• Professional Quality: e 935 capsule for clear and accurate sound.
• True Diversity Receiver: Half-rack design with metal housing and LCD display.
• Flexible Setup: Wireless synchronization via infrared, supports up to 20 channels.
• Wide Bandwidth: 42 MHz tuning range with 1680 selectable frequencies.
• Transmission Range: Up to 100 meters (300 feet).
• High RF Power: Up to 30 mW, adhering to country-specific regulations.

Specifications:

• Frequency Range: 606 - 648 MHz (CH38)

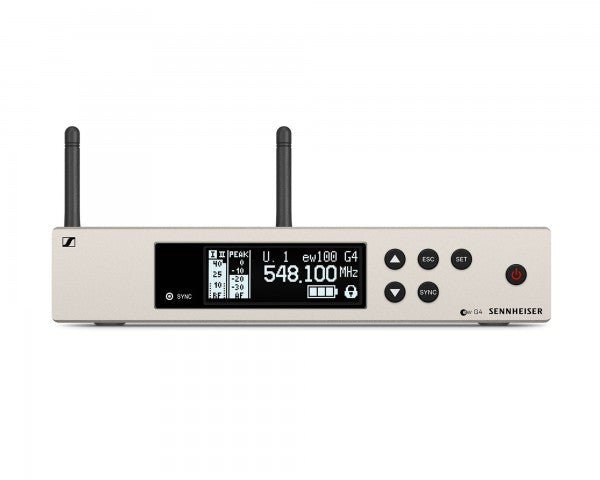

• Receiver (EM 100 G4):
  • Frequency Response: 80 - 18,000 Hz
  • Signal-to-Noise Ratio: ≥ 110 dBA
  • Total Harmonic Distortion: ≤ 0.9%
  • Dimensions: 43 mm (H) x 212 mm (W) x 190 mm (D)
  • Weight: 980 g
  • Power Supply: 12 V DC
  • Current Consumption: 300 mA

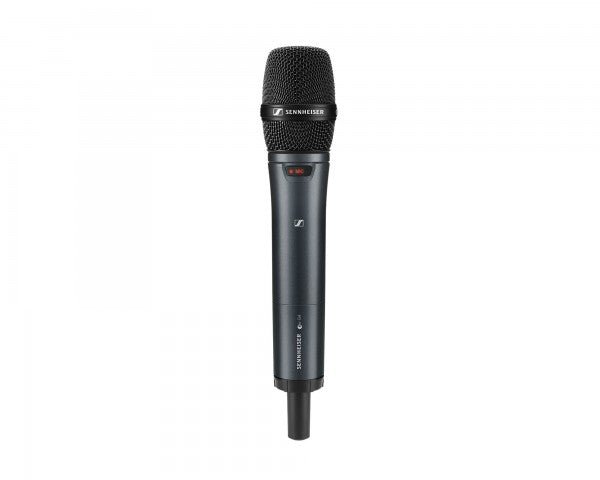

• Transmitter (SKM 100 G4-S with MMD 935 Capsule):
  • Transducer Principle: Dynamic
  • Sensitivity: 2.5 mV/Pa
  • Sound Pressure Level: 154 dB SPL
  • Pick-up Pattern: Cardioid
  • Dimensions: Ø 50 x 265 mm
  • Weight: 450 g
  • Power Supply: 2 AA batteries or BA 2015 accupack
  • Operating Time: Approximately 8 hours
• Temperature Range: -10 °C to +55 °C

Included in the Box:

• EM 100 G4 true diversity receiver
• SKM 100 G4-S handheld transmitter with MMD 935 microphone head
• GA 3 rackmount set
• MZQ 1 microphone clamp
• Power supply
• 2 AA batteries
• 2 rod antennas
• RJ 10 cable
• Quick guide
• Safety guide
• Manufacturer declaration sheet
• Frequency supplement sheet
