Description

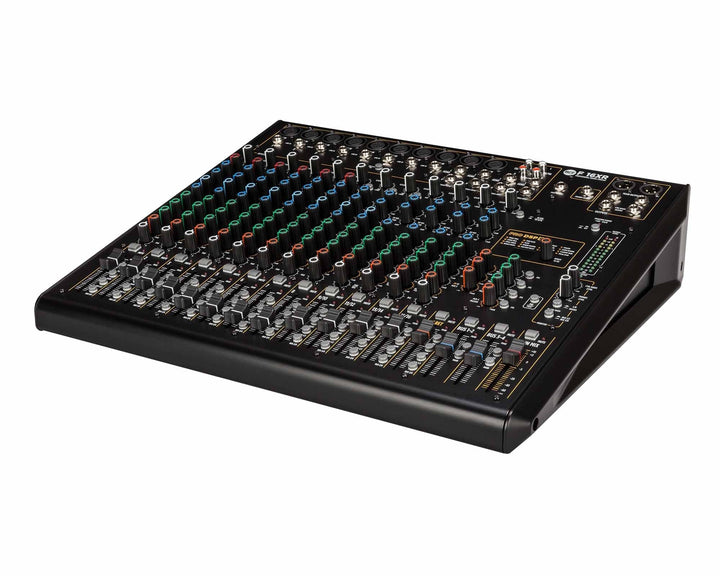

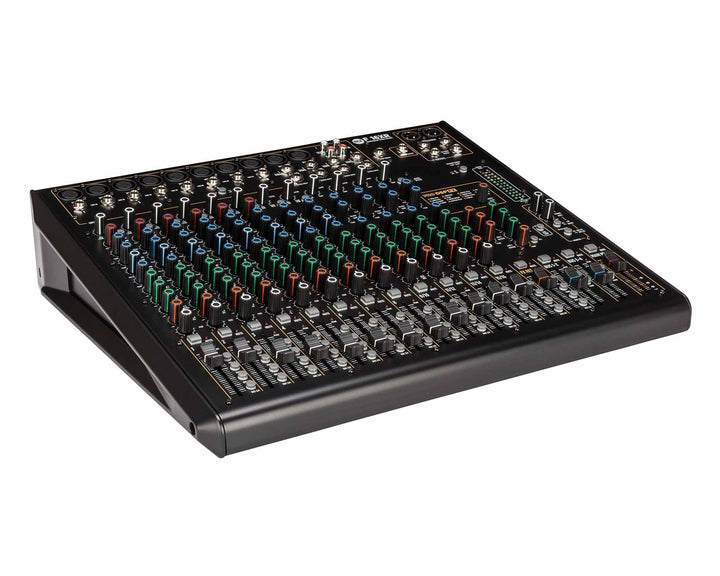

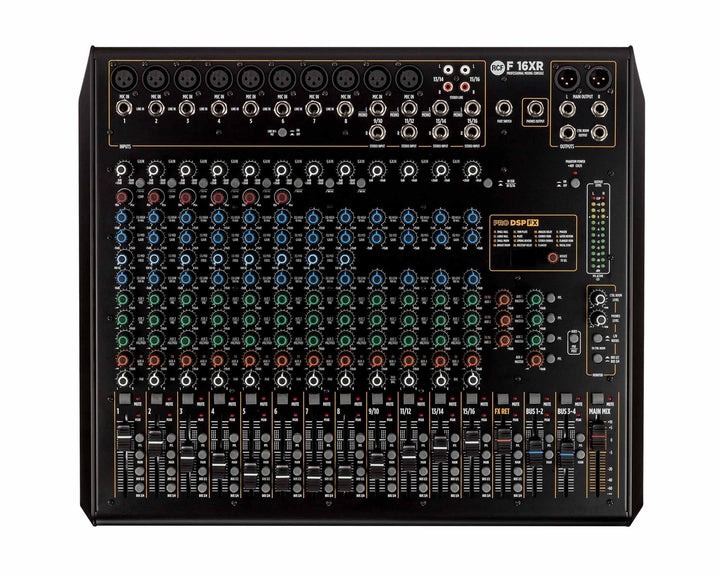

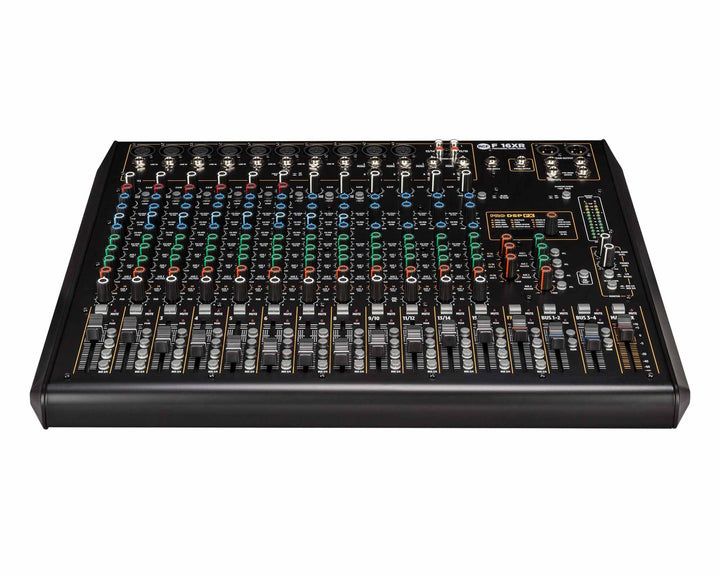

Overview: The F16XR presents a comprehensive solution for professional audio mixing, offering 10 mic preamp inputs, 4 mono line inputs, and 4 stereo line inputs. With its multi-FX capabilities and USB recording functionality, it's a versatile tool for musicians and sound enthusiasts alike.
Key Features:
- Mic Preamp Inputs: Equipped with 10 mic preamp inputs, ensuring clarity and precision in capturing vocals and instruments.
- Line Inputs: 4 mono line inputs and 4 stereo line inputs provide flexibility for connecting various audio sources.
- Multi-FX onboard: Boasts 16 PRO DSP internal presets, offering a range of studio-quality effects such as reverbs, delays, choruses, and flangers.
- USB Recording: Enables stereo recording and playback via the USB port, seamlessly integrating with computer-based DAWs for professional-quality recordings.
- Single Control Compressors: Incorporates 6 single control compressors, simplifying dynamic range control for instruments and vocals.

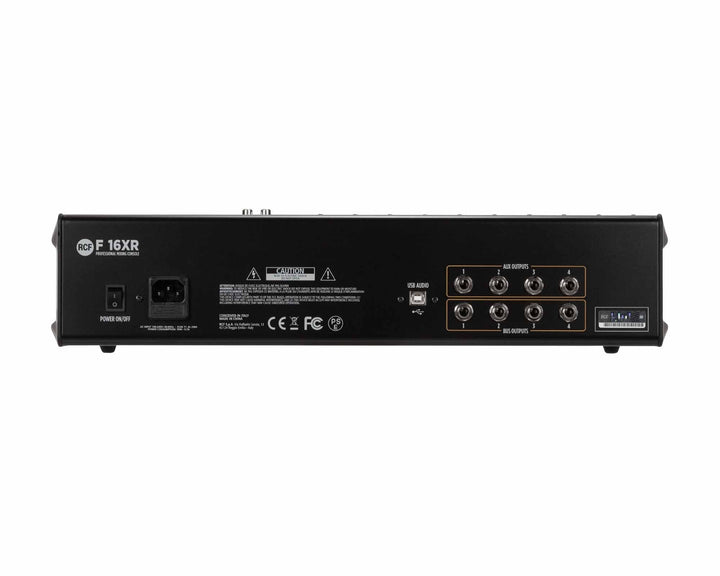

- Balanced Main Output: Delivers a robust main output signal with Stereo XLR + TRS connections, ensuring compatibility with various audio systems.
- Flexible Routing: Features two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post), allowing for versatile signal routing and monitoring options.
- Intuitive Controls: Equipped with 60mm faders for precise level adjustments and intuitive operation.
- Professional EQ: Mono channels feature a 3-band EQ with selectable mid-frequency, while stereo channels boast a 3-band EQ for precise sound shaping.
Specifications:
- Frequency Response: 20 Hz ÷ 20 kHz
- THD+N: <0.02 (20dB gain, 0dBu out)
- Power Supply: Internal, 100 V - 240 V, 30 W
- CE Marking: Yes
- Material: Sturdy metal chassis
- Color: Black
- Dimensions: Height: 107 mm / Width: 479 mm / Depth: 406 mm
- Weight: 6.4 kg
Package Contents:
- F16XR Mixing Console
- Power Cable
- User Manual
Ideal For:
- Live Performances
- Studio Recordings
- Podcasting
- DJ Sets
- Events and Conferences
