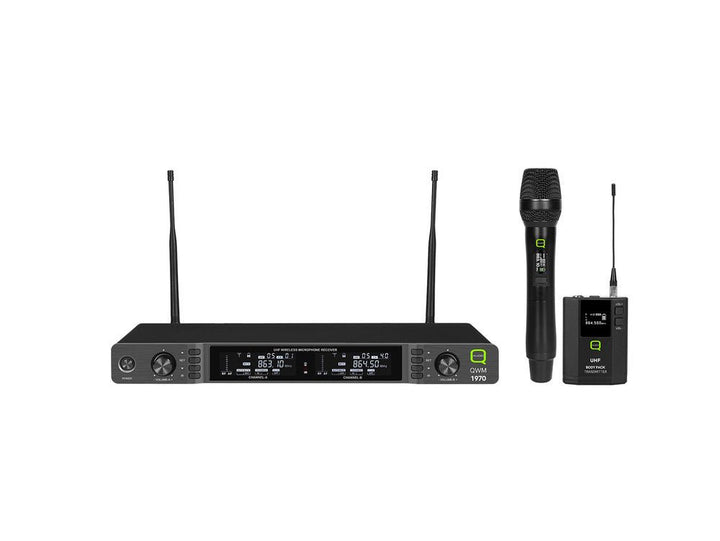

Q-Audio QWM 1970 HH BP UHF Dual Channel Diversity Handheld/Beltpack Wireless System - 19" Rack Mountable (863-865 MHz & 606-614 MHz)

The QWM 1970 HH BP is a versatile UHF wireless microphone system designed for professional-grade performance and flexibility. This dual-channel system features one dynamic handheld microphone and a beltpack transmitter with a TA-4 connector, making it ideal for scenarios requiring both handheld and lavalier microphone options. With selectable frequencies, advanced IR syncing, and robust audio clarity, the QWM 1970 HH BP ensures reliable performance for live events, presentations, and other professional applications.

Key Features
Receiver:

• Frequency Options: 863-865 MHz or 606-614 MHz
• Bandwidth: 2 MHz or 8 MHz (Frequency dependent)
• Dynamic Range: 96 dB
• Signal-to-Noise Ratio: 96 dB
• Audio Output: Mixed unbalanced 6.3mm jack and two balanced XLR outputs
• Frequency Response: 30Hz - 20kHz ±2dB for exceptional audio fidelity
• Receiving Sensitivity: -95dBm
• Distortion: <0.1%
• Power Supply: DC 12V 1A

Transmitters:

• Frequency Options: 863-865 MHz or 606-614 MHz
• IR Sync for efficient frequency pairing
• Harmonic Radiation: <-50dBc for reduced interference
• Output Power: Up to 30mW for strong and stable signals
• Battery: 2×1.5V AA batteries with over 5 hours of operation

Why Choose
The QWM 1970 HH BP provides unmatched flexibility for professional audio setups. The combination of a handheld microphone and a beltpack transmitter makes it suitable for diverse scenarios, from vocal performances to hands-free presentations. Its high dynamic range, low distortion, and extended frequency response ensure pristine audio quality in any environment. The 19" rack-mountable receiver enhances ease of integration, making it a practical choice for live performances, conferences, and studios.

Specifications

• Receiver:

  • Frequency Band: 863-865 MHz / 606-614 MHz
  • Bandwidth: 2 MHz or 8 MHz
  • Dynamic Range: 96 dB
  • Audio Output: Mixed unbalanced 6.3mm jack, 2 balanced XLR outputs
  • Power Supply: DC 12V 1A

• Transmitters:

  • Battery Life: Over 5 hours
  • Harmonic Radiation: <-50dBc
  • Frequency Switching: IR Sync
