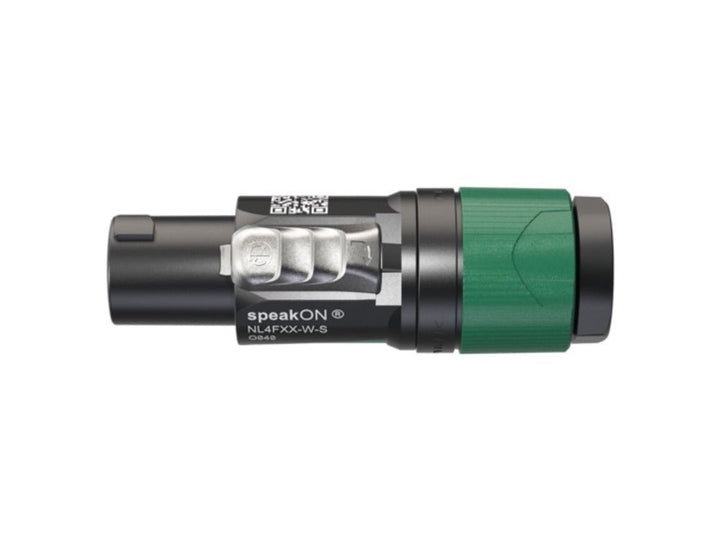

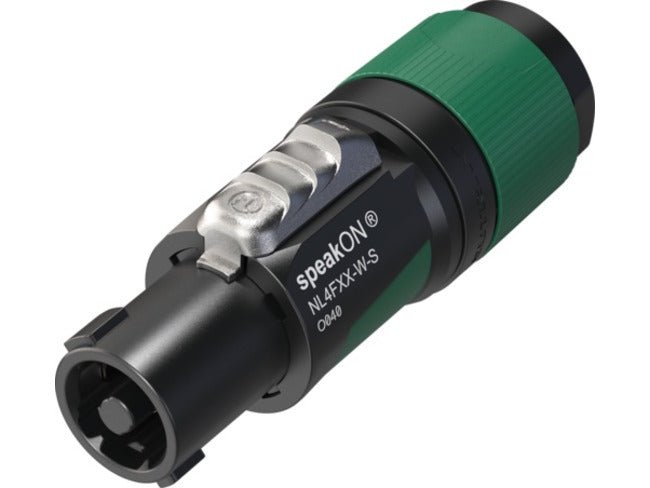

Neutrik NL4FXX-W-S 4-Pole speakON Cable Connector – Secure & Reliable Loudspeaker Connection

£7.00
Add to Wishlist

Safe and secure checkout

apple paygoogle paymaestromasterpaypalshopify payvisa
Description

The Neutrik NL4FXX-W-S is a 4-pole speakON cable connector featuring screw terminal assembly and chuck-type strain relief for cable diameters between 6mm and 12mm. Engineered for secure, professional loudspeaker connections, this connector incorporates Neutrik’s trusted twist-lock system, ensuring exceptional durability and performance.

Key Features

  • Industry-Standard speakON Connector – Reliable for loudspeaker connections
  • 4-Pole Design – Provides secure, high-quality signal transmission
  • High Current Rating – Supports up to 37A RMS
  • Twist Lock System – Ensures a tight, secure connection
  • Strain Relief Mechanism – Protects cables 6mm to 12mm in diameter
  • Ergonomic & Slip-Proof Housing – Enhances handling and durability
  • Easy Assembly – Strain relief locks mechanically for secure installation
  • IEC 61984 Certified – Compliant with international safety standards

Why Choose the Neutrik NL4FXX-W-S?

  • Proven Durability – Built with high-quality materials for long-term reliability
  • Enhanced Signal Integrity – Solid screw-type terminals with stranded wire protection
  • Reliable Performance – Used in professional audio setups worldwide
  • Secure & Easy Installation – No soldering required, ensures hassle-free setup
  • Versatile Compatibility – Works with various speaker cables and audio systems

Specifications

Feature Detail
Product Type speakON Cable Connector
Brand Neutrik
Model NL4FXX-W-S
Poles 4
Contact Resistance ≤ 2 mΩ
Dielectric Strength 2.8 kVac
Insulation Resistance > 10 GΩ (initially)
Current Rating (EU) 37 A, 250 V AC
Current Rating (USA) 35 A, 250 V AC
Cable Diameter 6 – 12 mm
Termination Type Screw-Type Terminals
Locking System Twist Lock
Material Copper Alloy, Zinc Diecast, Polyamide (PA6.6)
Temperature Range -33°C to +80°C
Protection Class IP20
Flammability UL94 V-0
Mating Cycles Up to 5,000
