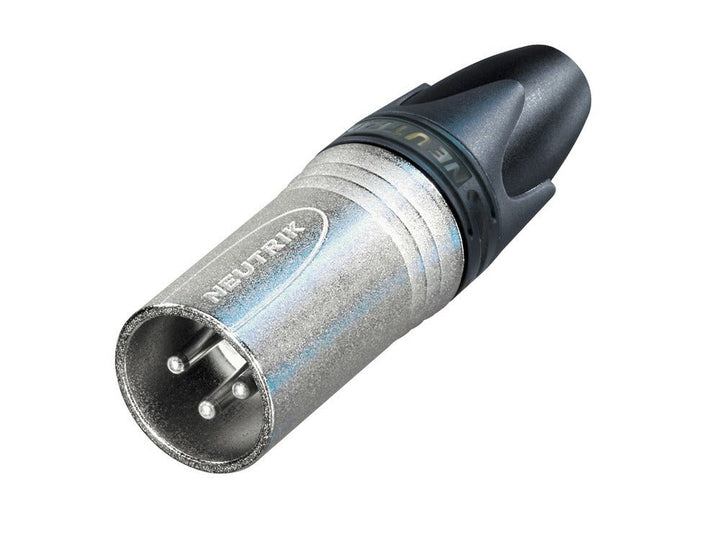

Neutrik NC3MXX 3-Pole Male XLR Cable Connector – Nickel Housing, Silver Contacts
Safe and secure checkout
The Neutrik NC3MXX is a 3-pole male XLR cable connector designed for professional audio applications. As the successor to the industry-standard X series, it features a rugged nickel-plated housing, silver-plated contacts, and an improved latch lock mechanism for secure and reliable connections. With an easy assembly design and superior strain relief, this connector is ideal for live sound, recording, and broadcast applications.
Key Features
- Durable Construction – Nickel-plated diecast housing ensures long-lasting performance.
- Reliable Connection – Improved locking recess without a "window" for increased durability.
- Enhanced Strain Relief – Chuck-type strain relief provides a secure grip on cables from 3.5mm to 8.0mm OD.
- High-Quality Contacts – Brass contacts with 2μm silver plating for optimal conductivity.
- Ergonomic Design – Sleek and easy to handle for professional use.
- Protection Against Damage – Internal thread on the shell prevents wear and tear.
- Solder Barrier – Prevents solder from entering the contact mating area.
- Customizable Coding – Optional color rings and boots for identification.
- Industry Compliance – Meets IEC 61076-2-103 standards for professional-grade reliability.
Why Choose the Neutrik NC3MXX?
Neutrik is a trusted name in the audio industry, known for its high-quality connectors. The NC3MXX is designed to meet the demands of professional environments, offering improved durability, secure locking, and excellent conductivity. Whether you're wiring a studio, setting up a live performance, or integrating AV systems, this connector ensures a stable and high-quality signal transmission.
Specifications
Feature | Specification |
---|---|
Connection Type | XLR (3-Pole Male) |
Housing Material | Zinc Diecast (Nickel-Plated) |
Contact Material | Brass (Silver-Plated) |
Cable Outer Diameter | 3.5mm – 8.0mm |
Capacitance | ≤ 4 pF |
Contact Resistance | ≤ 3 mΩ |
Dielectric Strength | 1.5 kV DC |
Insulation Resistance | >10 GΩ |
Rated Current | 16A |
Rated Voltage | <50V |
Locking Mechanism | Latch Lock |
Temperature Range | -30°C to +80°C |
Lifetime | >1000 mating cycles |
Protection Class | IP40 |
