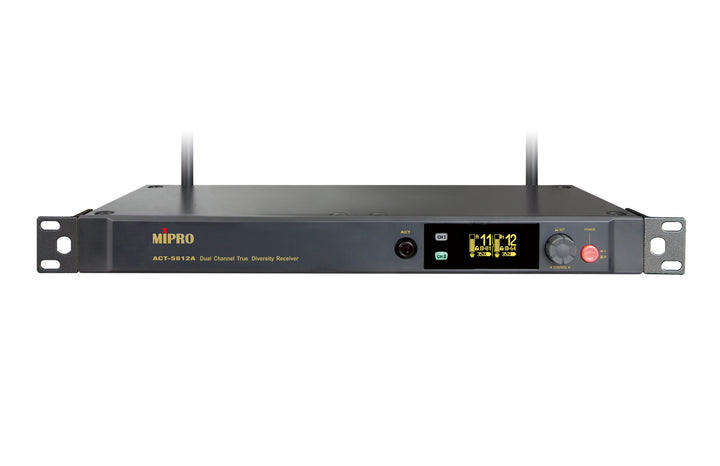

The MIPRO ACT-5812A is a full-rack, dual-channel true-diversity digital receiver for the 5.8 GHz ISM band. It offers fast setup with Auto Scan and ACT Sync, ultra-low latency in Group B, and 24-bit/48 kHz audio for clean, natural sound. Independent or mixed outputs, OLED control, and antenna cascade ports make it a tidy choice for venues, houses of worship, education, and corporate AV where UHF space is crowded.

Key Features

• Dual-channel, 1U full-rack metal chassis (19")

• License-free 5.8 GHz ISM operation to steer clear of typical UHF/2.4 GHz/Wi-Fi congestion

• True diversity dual-tuner reception for stable RF performance

• Auto Scan + ACT Sync for quick, accurate frequency pairing

• Channel plan: Group A (12 ch); Group B split into B1/B2 (12 ch each) → 24 channels total

• Per-channel IDs: 64 standard + 1 special ID to run multi-room rigs without clashes

• Ultra-low latency: < 1.5 ms in Group B

• 24-bit / 48 kHz digital audio; 18 Hz–23 kHz response; >120 dBA dynamic range

• Outputs: Balanced XLR (independent per channel) + ¼" (6.3 mm) TS (independent or mixed); output level –10 to +20 dB

• TNC antenna I/O with booster bias and daisy-chain/cascade ports for expanded coverage

• External 100–240 V auto-switching PSU; DC 12–15 V at the unit

• Compatible with ACT-580 series 5 GHz handheld and bodypack transmitters

Why Choose the ACT-5812A?

• Clean RF space at 5.8 GHz: A practical alternative when UHF is busy

• Scalable installs: Antenna cascade and ID codes support multi-receiver, multi-room systems

• Low-latency monitoring: Sub-2 ms performance in Group B helps keep performers comfortable

• Flexible routing: Independent or mixed outputs simplify mixer/DSP integration

Specifications

• Model: ACT-5812A

• Type: 5.8 GHz Digital Dual-Channel Receiver (Full-rack 1U, 19")

• RF Band / BW: ISM 5.8 GHz / 125 MHz

• Receiving Mode: True diversity (dual tuners)

• Display / Controls: Graphic OLED; ACT sync; channel select buttons; rotary knob

• Channel Plan: Group A (12 ch); Group B = B1 + B2 (12 ch each) → 24 channels

• ID Codes: 64 standard + 1 special per channel

• Sensitivity: 12 dBμV @ S/N > 100 dB

• Audio Processing: 24-bit / 48 kHz

• Frequency Response: 18 Hz – 23 kHz

• Dynamic Range: >120 dBA

• Latency: < 1.5 ms (Group B)

• EQ: Low-Cut / Flat

• Audio Outputs: Balanced XLR (independent); Unbalanced ¼" (6.3 mm) TS (independent or mixed); –10 to +20 dB adjustable

• Antenna: 50 Ω TNC connectors with booster bias; TNC daisy-chain/cascade

• Power: DC 12–15 V (included AC 100–240 V switching PSU)

• Dimensions (W×H×D): 420 × 44 × 162 mm

• Weight: ≈ 1.4 kg

• Compatibility: Works with MIPRO ACT-580 series 5 GHz handheld/bodypack transmitters
