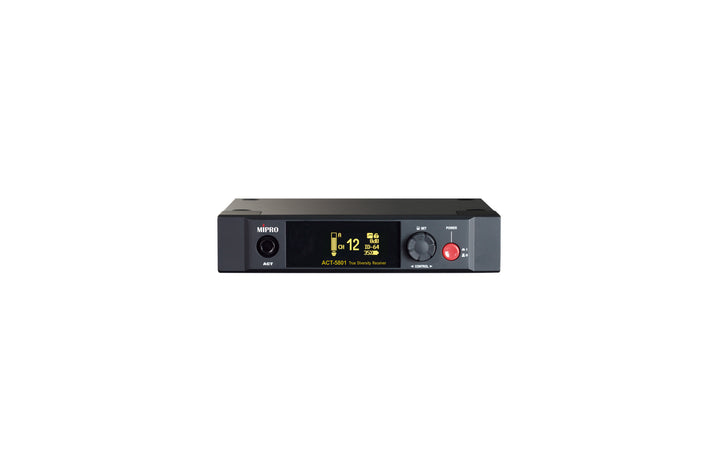

The MIPRO ACT-5801 is a half-rack, true-diversity digital receiver operating in the license-free 5.8 GHz ISM band. It pairs quickly via MIPRO’s Auto Scan and ACT Sync, delivers low-latency audio (as little as 1.5 ms in Group B), and provides 24-bit/48 kHz performance for clear, natural sound. With balanced XLR and unbalanced ¼" outputs, a bright OLED display, and dual external antenna connectors with cascade ports, it’s a reliable choice for venues, houses of worship, education, and corporate AV where the UHF band is congested.

Key Features

• License-free 5.8 GHz operation avoids typical UHF/2.4 GHz/Wi-Fi conflicts

• True Diversity dual-tuner reception for stable RF performance

• Fast setup with Auto Scan + ACT frequency sync

• Channel plan: Group A (12 ch), Group B split into B1/B2 (12 ch each) — 24 channels total

• Multi-room friendly: 64 standard IDs + 1 special ID per channel

• Ultra-low latency: down to 1.5 ms in Group B

• 24-bit / 48 kHz digital audio; 18 Hz–23 kHz frequency response; >120 dBA dynamic range

• Outputs: Balanced XLR + ¼" (6.3 mm) TS, output level adjustable -10 to +20 dB

• High-contrast OLED with rotary control + ACT button

• Half-rack metal chassis with rear dual antenna connectors and antenna cascade ports

• External 100–240 V auto-switching PSU; DC 12–15 V at the unit

• Compatible with ACT-580 series handheld and bodypack transmitters (5 GHz)

Why Choose the ACT-5801?

• Cleaner spectrum option: The 5.8 GHz band is less crowded for many installs, reducing dropouts where UHF is busy.

• Quick, repeatable setup: Auto Scan finds clear channels; ACT Sync pairs frequencies fast across multiple rooms or stages.

• Low-latency monitoring: Group B’s sub-2 ms latency keeps performers comfortable for speech and music.

• Scales with your rig: Antenna cascade and ID-code options support multi-receiver, multi-room deployments.

• Straightforward I/O: Balanced/unbalanced outputs and adjustable level simplify integration with mixers and DSP.

Specifications

• Model: ACT-5801

• Type: 5.8 GHz Digital Single-Channel Receiver (Half-rack, 9.5")

• RF Range / Bandwidth: ISM 5.8 GHz / 125 MHz

• Receiving Mode: True diversity (dual tuners)

• Display / Controls: Graphic OLED, rotary knob, ACT sync button

• Channel Plan: Group A (12 ch); Group B (B1 + B2, 12 ch each) → 24 channels

• ID Codes: 64 standard IDs + 1 special ID per channel

• Sensitivity: 12 dBμV @ S/N > 100 dB

• Audio Processing: 24-bit / 48 kHz

• Freq. Response: 18 Hz – 23 kHz

• Dynamic Range: >120 dBA

• Latency: < 1.5 ms (Group B)

• EQ: Low-Cut / Flat

• Audio Outputs: Balanced XLR & Unbalanced ¼" (6.3 mm); -10 to +20 dB adjustable

• Antenna: Dual external connectors + cascade ports

• Power: DC 12–15 V (included AC 100–240 V switching PSU)

• Dimensions (W×H×D): 210 × 44 × 162 mm

• Weight: ≈ 0.7 kg

• Compatibility: Works with MIPRO ACT-580 series handheld/bodypack transmitters (5 GHz)
