Midas DL32 Stage Box – 32 In / 16 Out, AES50 + ADAT (DL32)

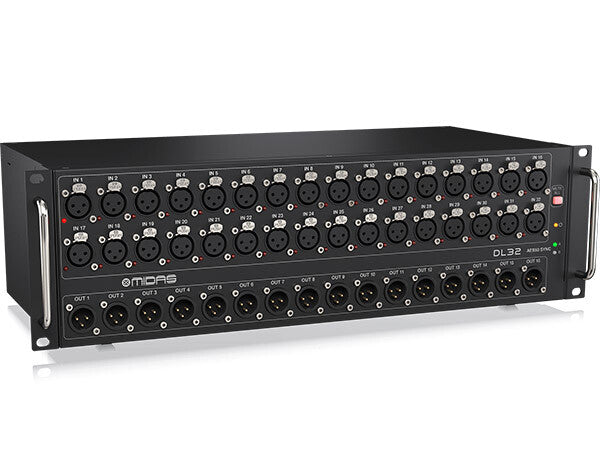

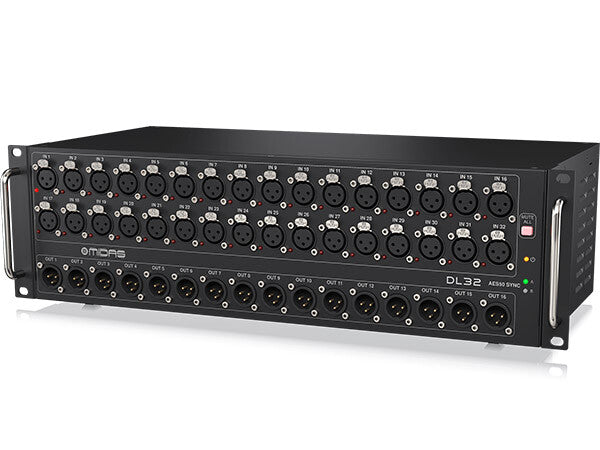

A road-ready 3U digital stage box with 32 remote-controllable Midas PRO mic preamps and 16 balanced XLR outputs. The DL32 connects stage to FOH over a single AES50 (Cat5e) line, adds ULTRANET for personal monitoring/Turbosound iQ control, and provides dual ADAT plus AES/EBU outs for recorders, processors or system controllers.

Key Features

• 32 Midas PRO microphone preamps with per-channel 48 V phantom power

• 16 balanced XLR line returns for on-stage IEM amps, wedges, or sub-snakes

• Dual AES50 (SuperMAC) ports for up to 100 m runs, redundancy/cascade, and stage-split with M32/other AES50 consoles

• ULTRANET (P16/iQ) RJ45 output for personal mixers and Turbosound iQ loudspeakers

• Digital outputs: 2 × ADAT (TOSLINK, 8 ch each) and 2 × AES/EBU (XLR)

• MIDI In/Out for on-stage device control via the console

• 3U steel chassis with Neutrik etherCON; universal auto-range PSU

Why Choose DL32

When you need plenty of clean headroom and a solid network backbone, the DL32 gives you proven Midas preamps, simple one-cable stage connectivity, and flexible outputs for monitors, recording, and system processing—without adding a separate router or patch bay.

Specifications

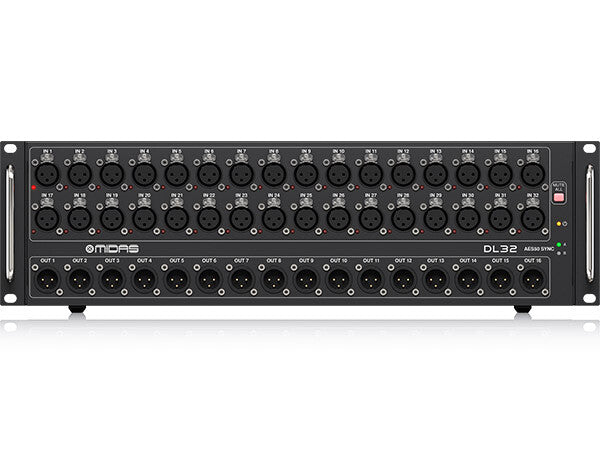

• I/O: 32 × XLR mic/line inputs (remote-controllable preamps), 16 × XLR line outputs

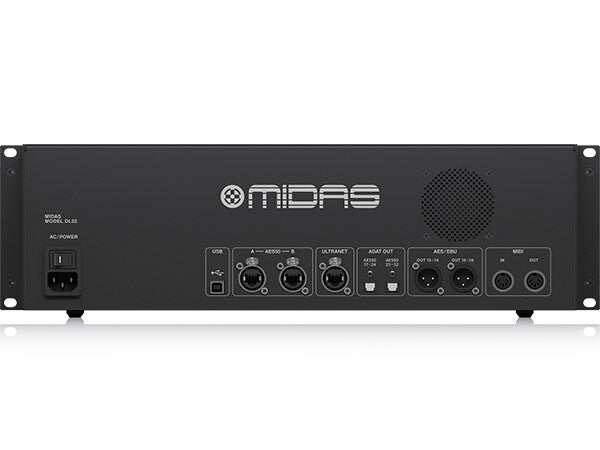

• Networking: 2 × AES50 (SuperMAC, Cat5e, up to 100 m), stage-split/cascade capable

• Monitoring/Control: 1 × ULTRANET (RJ45), MIDI In/Out

• Digital outs: 2 × ADAT (TOSLINK, 2 × 8 ch @ 44.1/48 kHz), 2 × AES/EBU (XLR)

• Conversion / SR: 24-bit @ 44.1/48 kHz

• Frequency response: 20 Hz–20 kHz (at 48 kHz, 0/-1 dB)

• Dynamic range (A/D/D/A path): up to 110 dB (typical)

• Form factor: 3U rack, 483 × 242 × 138 mm

• Weight: 5.7 kg

• Power: 100–240 V AC, 55 W

• UPC: 748252156747
