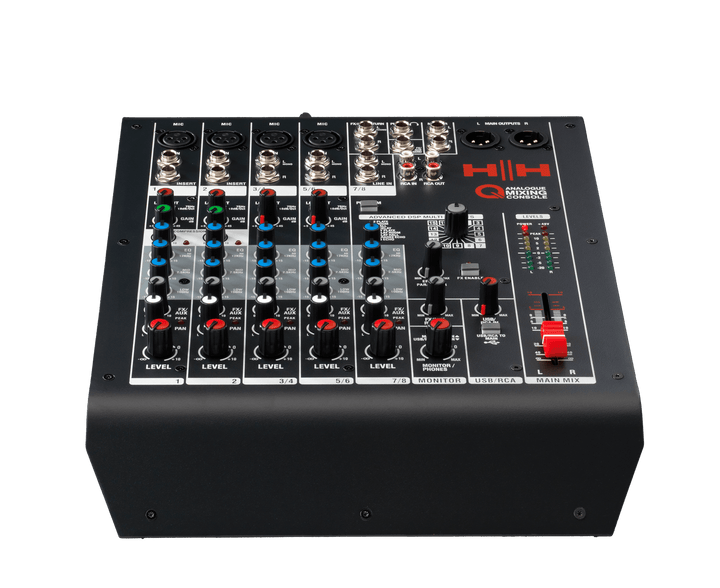

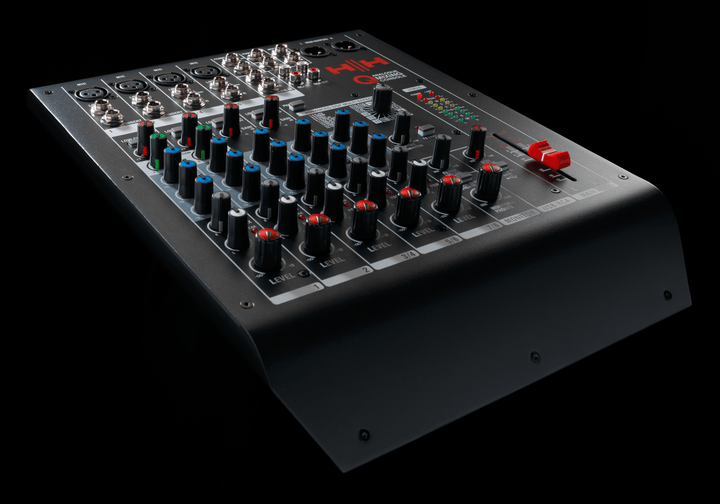

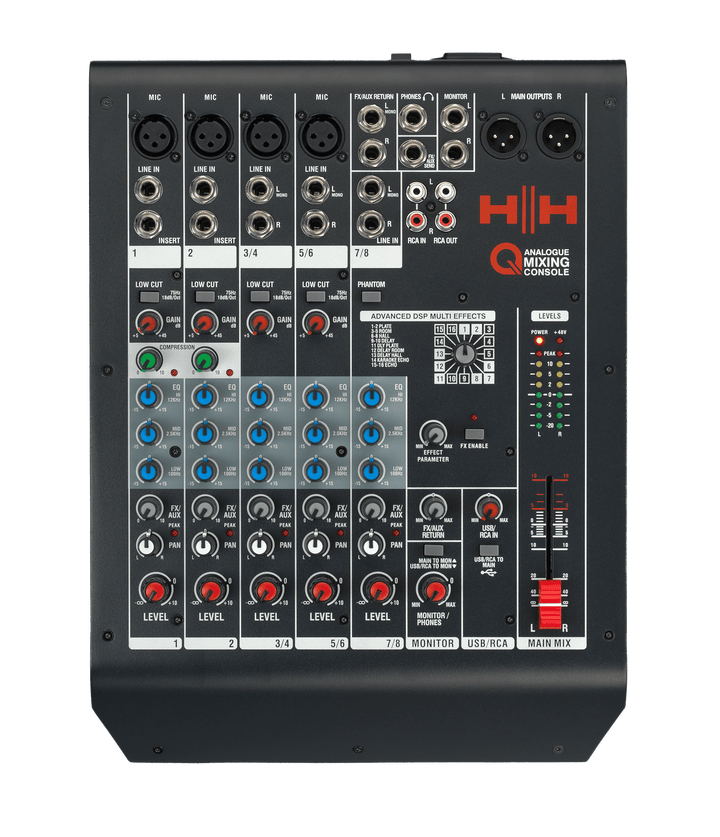

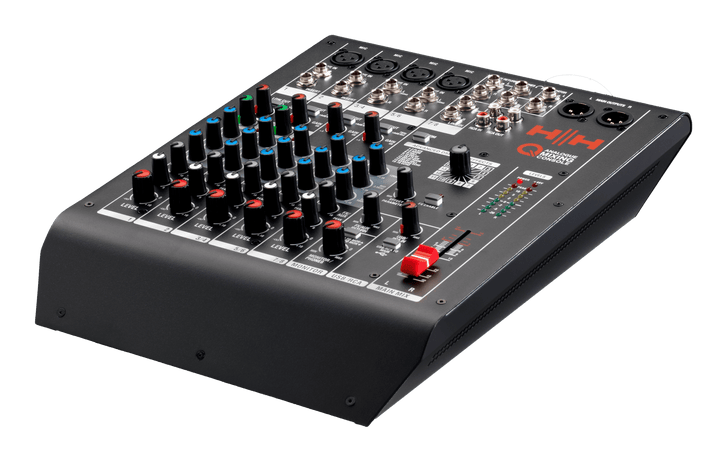

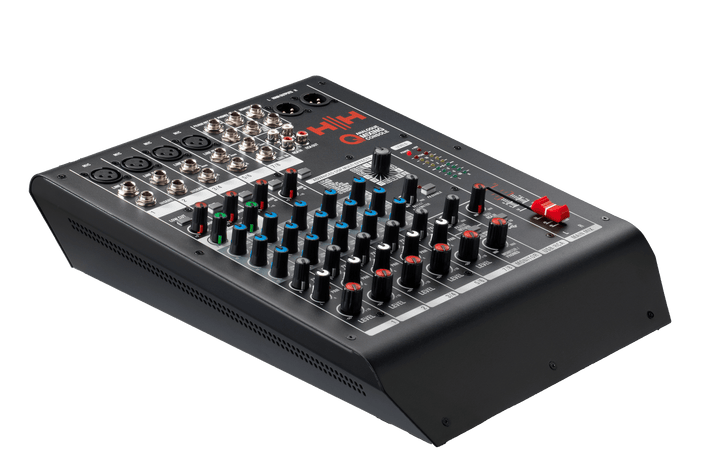

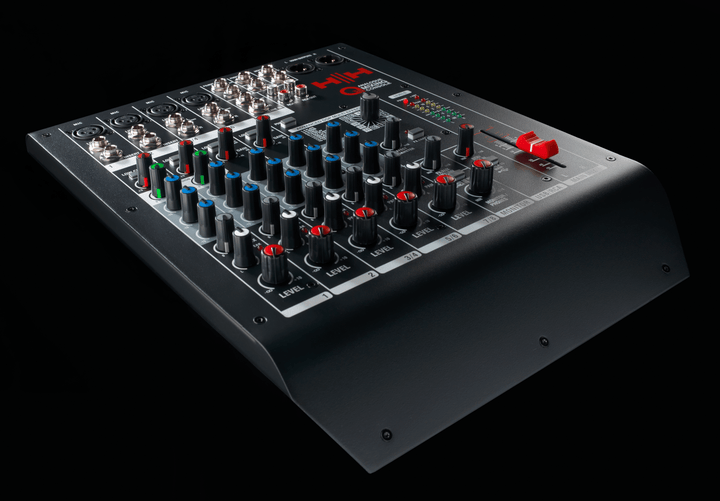

HH Q8FX Compact 8-Channel Analogue Mixing Console – USB, DSP Effects, and Compression

The HH Q8FX Compact 8-Channel Mixer is a versatile analogue mixing console designed for live performances, recording, and speech applications. Featuring 4 mic inputs, 3 stereo line inputs, and 16 DSP effects, the Q8FX provides exceptional control over your audio mix. Built with low-noise preamps, single-knob compression, and a 3-band EQ, this mixer ensures professional-grade sound shaping. With USB audio in/out, stereo RCA connections, and balanced XLR outputs, the Q8FX is ideal for musicians, podcasters, and sound engineers.

Key Features:

• 8 Total Channels – 4 microphone inputs with low-noise preamps and 3 stereo line inputs.
• Single-Knob Compression – Easy-to-use compressors on Channels 1 & 2 for dynamic control.
• 3-Band EQ & Low Cut Filter – Shape your sound with High (12kHz), Mid (2.5kHz), and Low (100Hz) adjustments and a 75Hz low cut on Channels 1-6.
• 16 DSP Effects – High-quality reverb, delay, and echo effects with parameter control.
• USB Audio Interface – 2-in/2-out USB for direct recording and playback (16-bit, 48kHz).
• Balanced XLR Outputs – Ensures a clean and noise-free connection to PA systems.
• RCA Stereo In/Out & Monitor Out – Flexible connectivity for various audio sources.
• Global Phantom Power (+48V) – Supports condenser microphones.
• 8-Point LED Metering – Visual monitoring of output levels.
• Solid, Compact Design – Built for durability, ideal for portable and studio setups.

Why Choose the HH Q8FX?

Perfect for small-to-medium live performances, home studios, podcasters, and conference setups, the HH Q8FX delivers professional-quality audio mixing with easy-to-use controls and flexible connectivity. Its built-in USB interface makes it a great choice for recording and streaming, while the rugged construction ensures reliability for gigging musicians and engineers.

Specifications:

• Inputs:
  • 4 x XLR (CH1-6)
  • 2 x ¼” TRS (Mono CH1-2)
  • 2 x Stereo ¼” TRS (CH3-6)
  • 1 x Stereo ¼” TRS (CH7-8)
  • RCA Stereo In
  • USB Audio In/Out

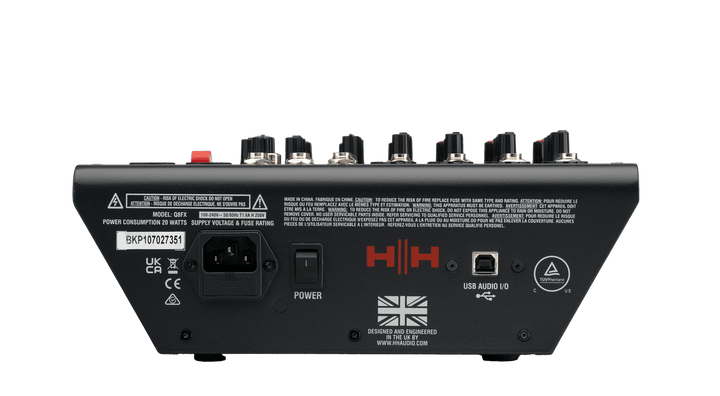

• Outputs:
  • Balanced Stereo XLR Main Out
  • Stereo ¼” TRS Monitor Out
  • Mono ¼” TRS FX Send
  • RCA Stereo Out
• Effects: 16 reverb and delay effects
• EQ: 3-band per channel
• Power: Universal 100-240V ~ 50/60Hz
• Weight: 3.5kg (7.7 lbs)

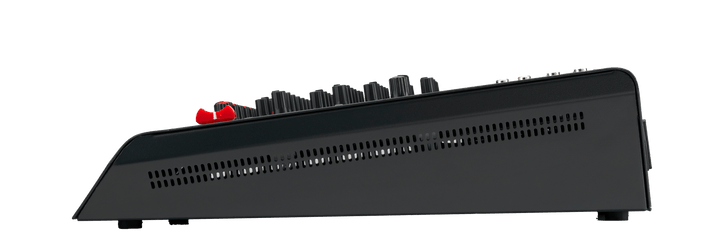

• Dimensions: 96 x 261.5 x 351mm (3.8" x 10.3" x 13.8")
