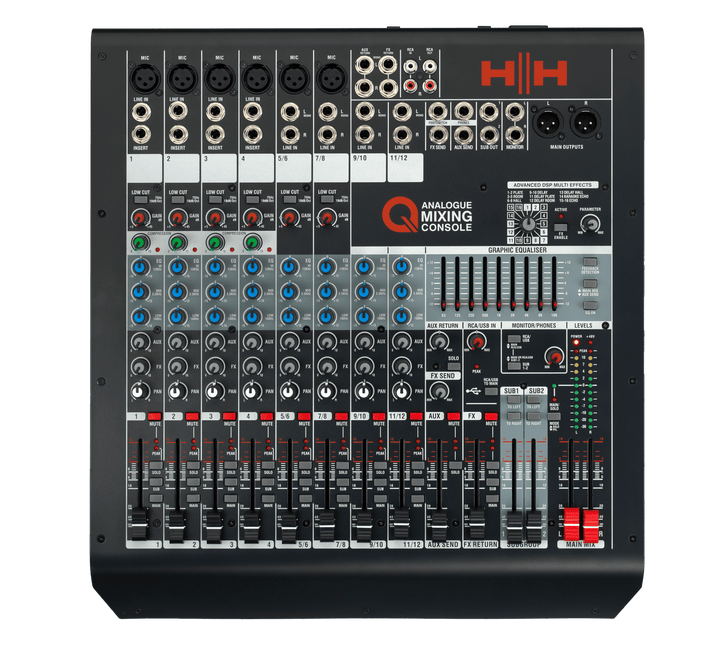

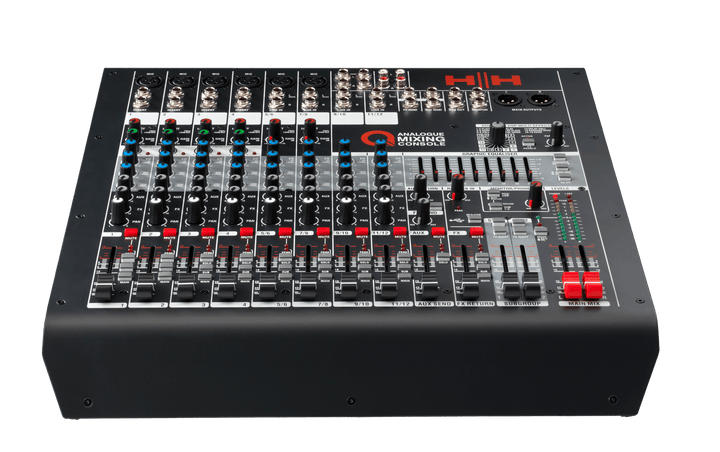

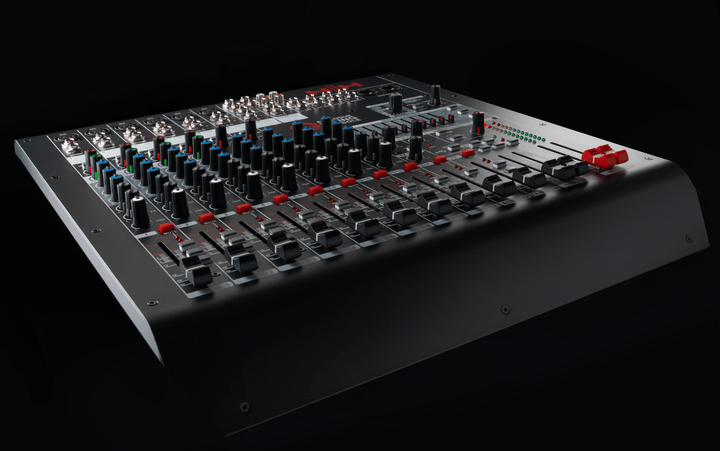

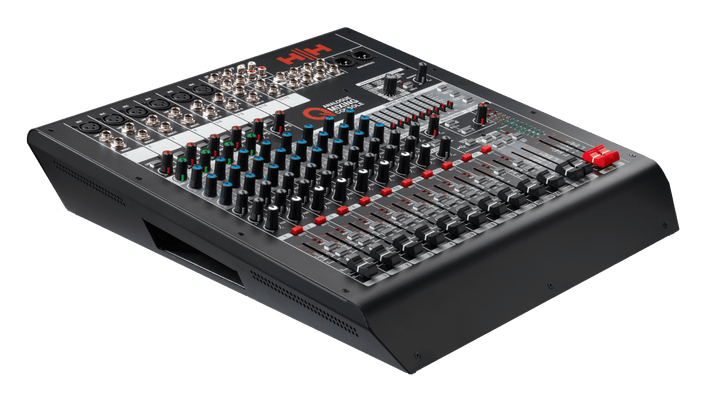

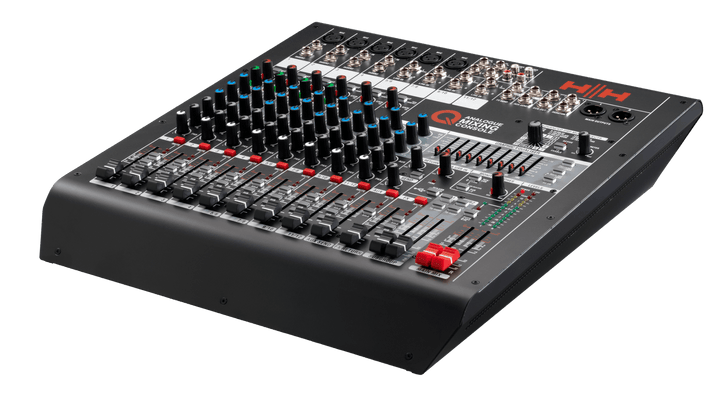

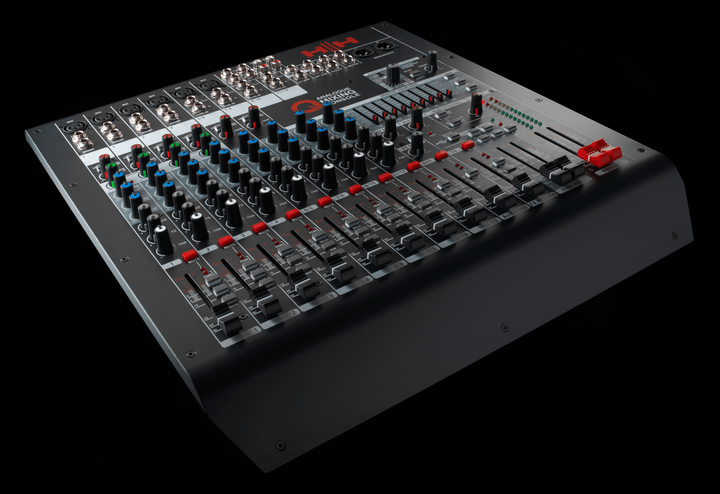

HH Q12FX Compact 12-Channel Analogue Mixing Console – USB, DSP Effects & Graphic EQ

The HH Q12FX Compact 12-Channel Mixer is a versatile analogue mixing console designed for live performances, recording, and speech applications. Featuring 6 mic inputs with low-noise preamps, 4 stereo line inputs, 16 DSP effects, and a 9-band graphic EQ, this mixer delivers professional sound control. Built-in single-knob compression on Channels 1-4, 2 auxiliary sends, and USB audio in/out make the Q12FX a powerful choice for musicians, sound engineers, and podcasters.

Key Features:

• 12 Total Channels – 6 mono mic/line inputs and 4 stereo line inputs.
• Single-Knob Compression – Channels 1-4 feature built-in compression for dynamic control.
• 3-Band EQ & Low Cut Filter – Adjust High (12kHz), Mid (2.5kHz), and Low (100Hz) frequencies, with a 75Hz low cut on CH1-8.
• 16 DSP Effects – High-quality reverb, delay, and echo effects with parameter control.
• 9-Band Graphic EQ – Includes feedback detection for precise mix tuning.
• USB Audio Interface – 2-in/2-out USB for direct recording and playback (16-bit, 48kHz).
• Balanced XLR Outputs & Subgroups – 2 subgroups for additional mix control.
• RCA Stereo In/Out & Monitor Out – Flexible connectivity for various audio sources.
• Global Phantom Power (+48V) – Supports condenser microphones.
• 12-Point LED Metering – Visual monitoring of output levels.
• Durable, Compact Design – Ideal for portable and studio setups.

Why Choose the HH Q12FX?

The HH Q12FX is the perfect choice for bands, DJs, podcasters, and venues needing a high-quality, compact mixing console. The built-in compression, DSP effects, graphic EQ, and subgroups provide full control over your sound, whether you're mixing live or recording in the studio.

Specifications:

• Inputs:
  • 6 x XLR Mic Inputs (CH1-8)
  • 4 x ¼” TRS Mono Line Inputs (CH1-4)
  • 2 x Stereo ¼” TRS Line Inputs (CH5-8)
  • 2 x Stereo ¼” TRS Line Inputs (CH9-12)
  • RCA Stereo In
  • USB Audio In/Out
• Outputs:
  • Balanced Stereo XLR Main Out
  • 2 x ¼” TRS Sub Outputs
  • Stereo ¼” TRS Monitor Out
  • Mono ¼” TRS FX Send & Aux Send
  • RCA Stereo Out
• Effects: 16 reverb and delay effects
• EQ: 3-band per channel + 9-band master graphic EQ
• Power: Universal 100-240V ~ 50/60Hz
• Weight: 6.1kg (13.4 lbs)
• Dimensions: 107 x 401.5 x 443mm (4.2" x 15.8" x 17.4")
