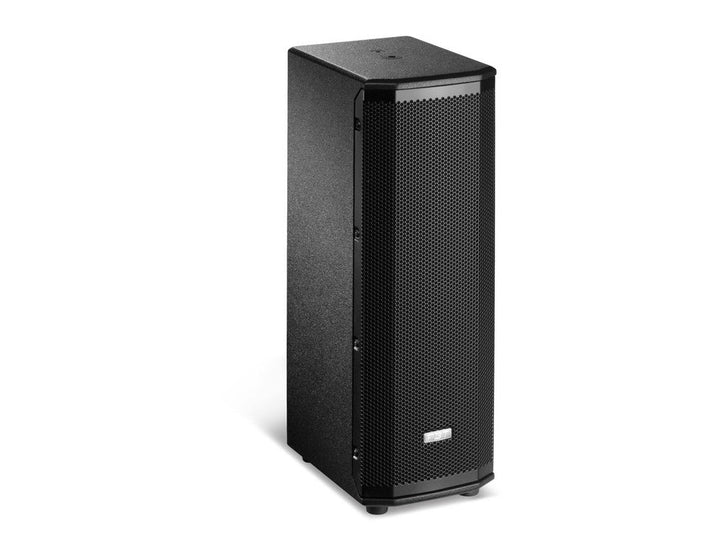

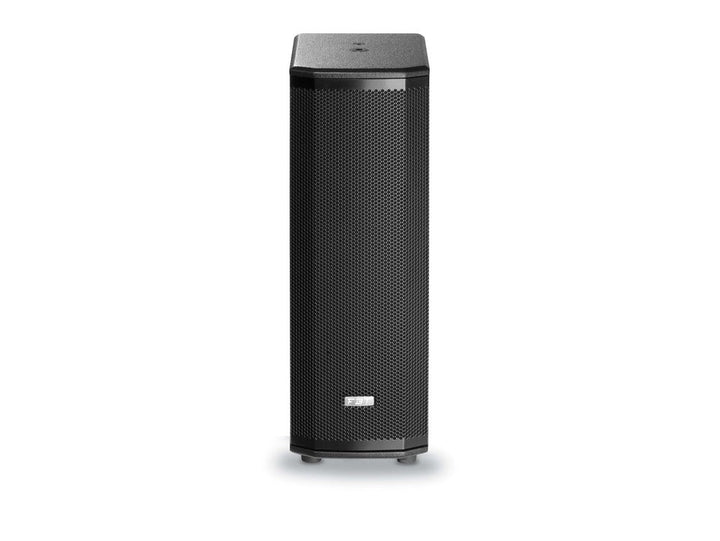

The Ventis 206 is a versatile passive speaker designed for both portable use and fixed installations. It features a 2-way configuration with two 6.5-inch woofers and a 1-inch rotatable horn, providing a balanced frequency response from 75Hz to 20kHz. The speaker is capable of handling 400W RMS at 8 ohms, delivering a maximum sound pressure level (SPL) of 127 dB. Its robust construction includes a 15mm Baltic birch plywood cabinet, making it durable enough for various environments.
Connectivity is straightforward with two Speakon NL4 connectors (In and Thru), and the speaker is designed for flexibility with a 35mm pole mount and four M5 threaded rigging points, suitable for a range of mounting options. The full-length grille is backed with acoustic cloth, offering both protection and a sleek appearance. Optional brackets are available for permanent installations, further enhancing the Ventis 206’s adaptability.
Specifications:
- Model: Ventis 206
- Type: Passive 2-Way Speaker
- Power Handling: 400W RMS @ 8Ω
- Frequency Response: 75Hz - 20kHz (-6dB)
- Maximum SPL: 123 dB (continuous) / 127 dB (peak)
- Sensitivity (@1W/1m): 97dB
- Low-Frequency Drivers: 2 x 6.5"
- High-Frequency Driver: 1 x 1" rotatable horn
- Nominal Impedance: 8 Ohms
- Input Connectors: 2 x Speakon NL4 (In and Thru)
- Cabinet Material: 15mm Baltic Birch Plywood
- Grille: Full-length with acoustic cloth backing
- Mounting Options: 35mm pole mount, 4 x M5 threaded rigging points
- Recommended Amplifier Power: 400W RMS
- Long-Term Power Handling: 200W
- Short-Term Power Handling: 800W
- Recommended High-Pass Filter: 60Hz, 12-24dB/Oct
- Dispersion (H x V): 70° x 50° (rotatable horn)
Dimensions & Weight:
- Net Dimensions (W x H x D): 190 x 560 x 260 mm
- Net Weight: 11.8 kg
- Transport Dimensions (W x H x D): 290 x 660 x 360 mm
- Transport Weight: 13.8 kg
