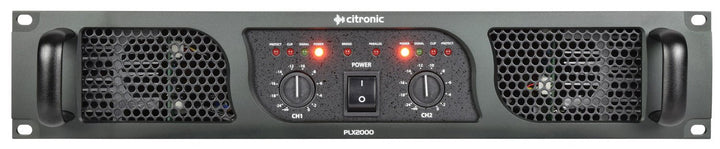

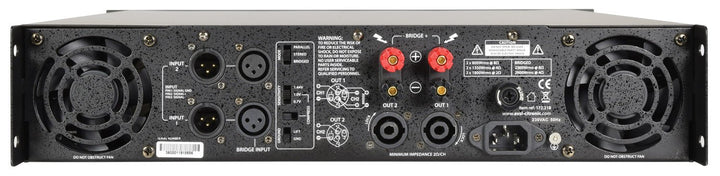

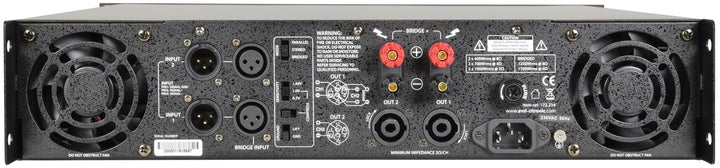

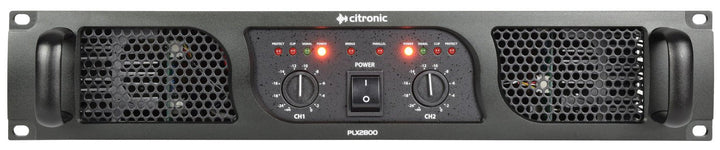

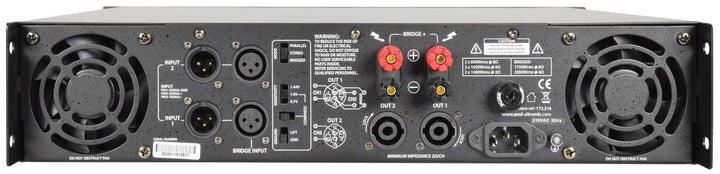

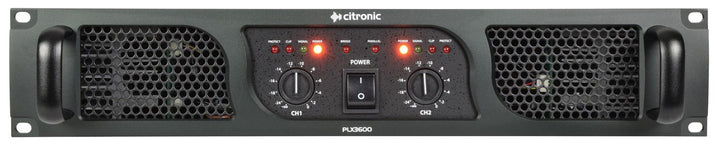

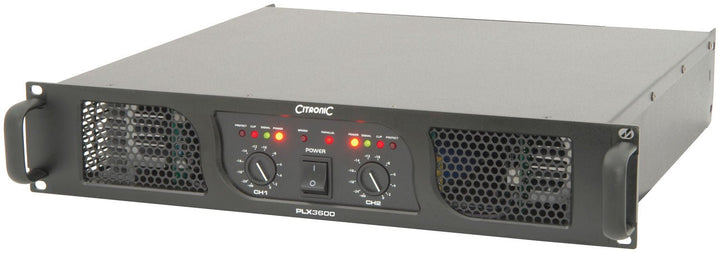

This 2U rackmount power amplifier features dual fan cooling and Class H architecture, designed for safe and stable power delivery. It offers balanced XLR inputs and speaker outputs via 2 SPK connectors or 4mm binding posts. The amplifier can operate with loads as low as 2 Ohms per side and can be configured in bridged mono mode for 4 Ohm loads. Additional features include a switchable ground lift, bridge mode, and a clip limiter.
Specifications:
-
Power Output (RMS):
- 8 Ohms: 2 x 600W
- 4 Ohms: 2 x 1050W
- 2 Ohms: 2 x 1400W
- Bridged 8 Ohms: 1750W
- Bridged 4 Ohms: 2300W
-
Amplifier Construction: Class-AB
-
Weight: 25kg
-
Dimensions: 482 x 453 x 88mm (2U)
-
Power Supply: 230Vac, 50Hz (IEC)
-
Fuse: F12A (6 x 32mm)
-

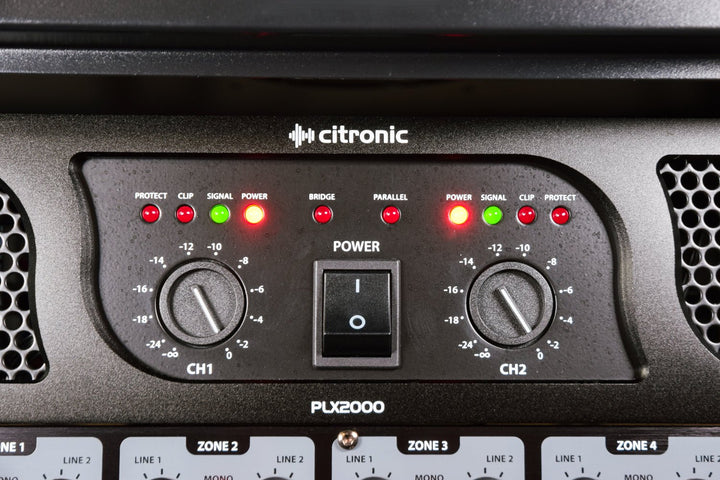

Controls: Level (channel 1 & 2), Ground, Mode, Clip Limiter
-
Input Impedance: 20k ohms
-
Frequency Response: 5Hz - 50kHz
-
Total Harmonic Distortion: 0.05%
-
Slew Rate: 40V/us
-
Damping Factor: >400
-
Protection: Short-circuit, overload, DC, and thermal protection
Features:
- Bridge mode for mono operation
- Stable operation down to 2 Ohms
- Switchable clip limiter for protection against distortion
| Power Rating |
2 x 700W @ 4 Ohms, 2 x 1050W @ 4 Ohms, 2 x 1350W @ 4 Ohms |
|---|
