Citronic H2400 Hybrid Class-H Power Amplifier – 2x1200W @ 2ohm, 1U
Safe and secure checkout

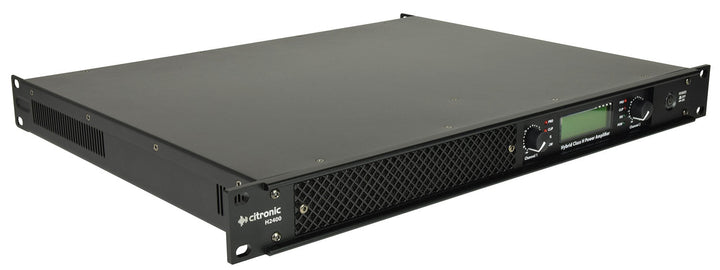

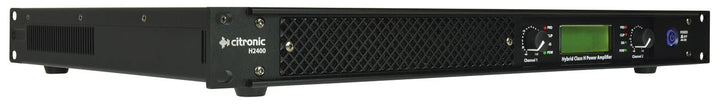

The Citronic H2400 Hybrid Class-H Power Amplifier is a lightweight, 19" rack-mountable amplifier, ideal for generating high sound pressure levels in medium to large sound reinforcement systems. Utilizing advanced hybrid class-H architecture, this amplifier combines efficient digital control with the robust power output of professional-grade amplifiers. With stability down to 2 ohms, it is perfect for demanding sound contractors, PA installers, and live sound engineers.
Key Features:
- Hybrid Class-H Circuit Design: Optimized for maximum power delivery with efficient digital monitoring.
- Switchable 120Hz Low-Pass Crossover: Ideal for subwoofers, minimizing the need for an external crossover.
- Real-Time Monitoring: LCD display provides status updates on supply voltage, internal temperature, and output levels.
- Full Protection System: Includes thermal, short circuit, RF, and DC fault protection, along with inrush limiting and automatic muting at power on/off.
- Versatile Input Sensitivity: Switchable between 1.0V, 1.4V, and 2.0V for compatibility with various audio sources.
- Multiple Operation Modes: Can be set to Stereo, Parallel, or Bridge mode for flexible use in different sound setups.
Why Choose Citronic H2400 Hybrid Class-H Power Amplifier?
The Citronic H2400 is engineered for high performance, delivering immediate and dynamic power on demand. Its hybrid design ensures long-lasting stability and sound quality, making it an essential component for professional PA systems, live sound events, and installations.
Specifications:
- Model: H2400 (172.125UK)
- Power RMS @ 2 Ohms: 2x1200W
- Power RMS @ 4 Ohms: 2x900W
- Power RMS @ 8 Ohms: 2x600W
- Power RMS Bridge @ 4 Ohms: 2400W
- Power RMS Bridge @ 8 Ohms: 1800W
- Dimensions: 483 x 361 x 44 mm (1U)
- Weight: 7.0kg
- Frequency Response: 20Hz-20KHz ±0.5dB
- THD +N: 0.2%
- Damping Factor: >700
- Input Impedance: 20KΩ (balanced), 10KΩ (unbalanced)
- Protection: Short circuit, thermal, RF, DC fault, on/off mute, active inrush limiting
