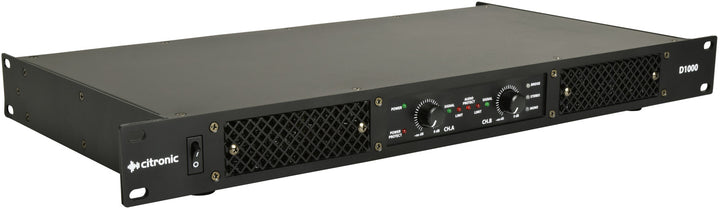

Citronic D1000 Class-D Power Amp – 2×500W, 1U (172.110UK)

A compact 1U Class-D stereo power amplifier designed for reliable day-to-day sound reinforcement. The D1000 delivers 2×500 W RMS @ 4 Ω (2×250 W @ 8 Ω) or 1×1000 W bridge @ 8 Ω in a lightweight chassis. It features a switchable 75 Hz low-cut filter, parallel/bridge modes, and an inbuilt limiter to help protect loudspeakers during peaks. Quiet, efficient cooling maintains stable performance in installs or portable racks.

Key Features

• Power: 2×500 W RMS @ 4 Ω; 2×250 W @ 8 Ω; Bridge 1×1000 W @ 8 Ω

• Form factor: 1U / 19" rackmount; lightweight chassis

• Operating modes: Stereo, Parallel (mono), Bridge (mono)

• Protection & control: inbuilt limiter, 75 Hz low-cut (switchable)

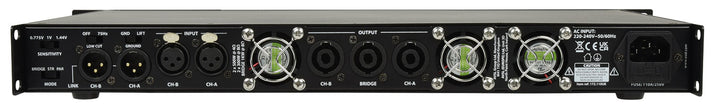

• Inputs: L/R XLR female with XLR male thru (loop-through)

• Outputs: L/R speakON-compatible connectors (+1 for bridge)

• Input sensitivity: 0.775 V / 1.0 V / 1.44 V (switchable)

• Cooling: efficient guided airflow for stable running

Why Choose the D1000

When you need solid output in a single rack unit, D1000 offers straightforward routing, proper protection, and useful deployment options. It’s a practical fit for live rigs, installs, rehearsal rooms, and sub/monitor duty without adding weight or complexity.

Specifications

• Model / SKU: D1000 / 172.110UK

• Amplifier class: Class-D

• Power (RMS): 2×250 W @ 8 Ω; 2×500 W @ 4 Ω

• Bridge (RMS): 1×1000 W @ 8 Ω

• Input sensitivity: 0.775 V / 1.0 V / 1.44 V (selectable)

• Low-cut filter: 75 Hz (switchable)

• Connections (in): 2× XLR-F (L/R) with 2× XLR-M thru

• Connections (out): 2× speakON-compatible; bridge on +1

• Modes: Stereo / Parallel / Bridge

• Mains: 220–240 V AC, 50/60 Hz (IEC)

• Fuse: T10A (20×5 mm)

• Dimensions: 482 × 245 × 44 mm (W×D×H)

• Weight: ≈3.93 kg (unit)

• EAN: 5015972221181
