CHAUVET Professional Cloud 9 Low-Lying Fog Machine (CLOUD9)

The CHAUVET Professional Cloud 9 is a high-output low-lying fog machine designed to create a thick rolling ground fog effect without using dry ice or CO₂. It’s built for large stages, theatres, live performance, themed environments, and event work where you need that classic “dancing on a cloud” look.
Because it doesn’t require special consumables like dry ice or CO₂, you avoid licensing / handling restrictions. The unit only needs distilled water and fog / haze fluid to generate a continuous low fog layer.

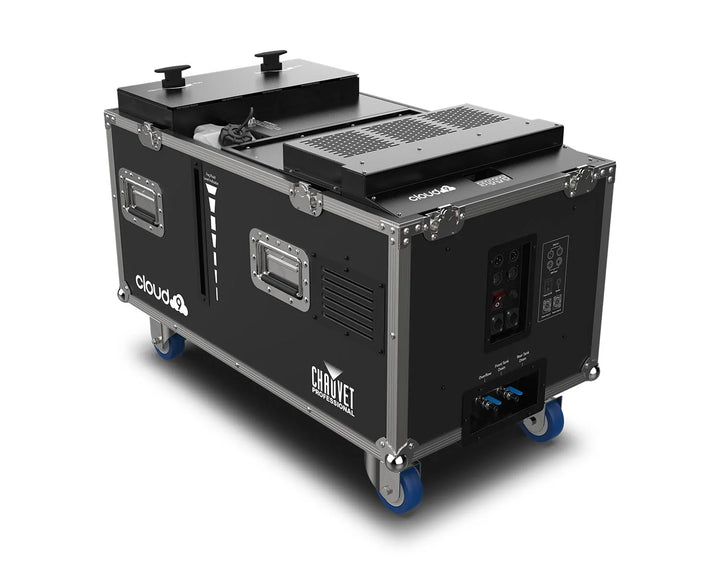

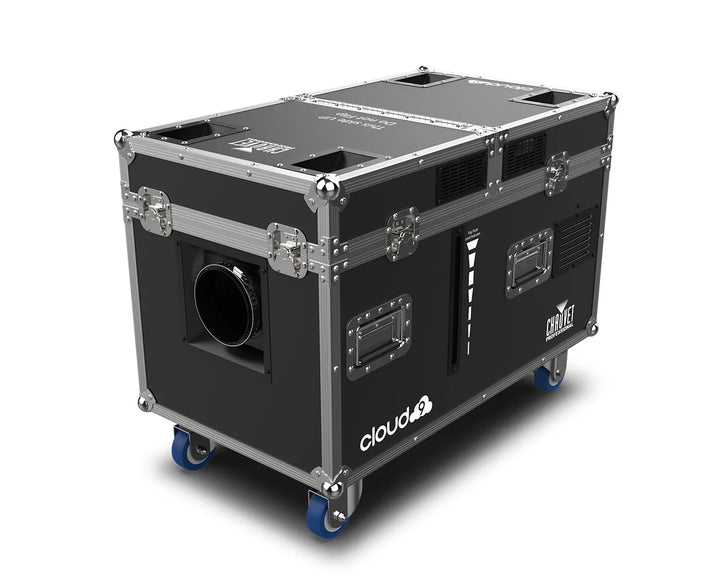

Cloud 9 ships already built into a rugged flight case with locking castors, metal grab handles, and a hinged lid, so it’s ready for touring and can even run in the case.
Typical warm-up time is around 3–4 minutes from cold, so it’s fast to deploy on-site.

Key Features

• Professional low-lying fog effect for stage, ballrooms, catwalks, first dances and reveal moments

• Continuous output rated up to approx. 15,000 cfm, covering around 3,230 ft² / 300 m² at full output

• Uses ultrasonic agitation to mix distilled water with fog fluid and keep the fog hugging the floor
  (no chiller/compressor block, no CO₂, no dry ice)

• Built-in road case with locking castors and hinged top cover – designed for rental/hire use and fast load-ins

• Onboard LCD control plus simple 2-channel DMX (fan speed and fog output) for show control

• Integrated water drain system for quicker pack-down and maintenance

• Can run continuously for long cues (up to two hours at 100% output in spec conditions)

• Supplied with directional hose, clamp, and Seetronic Powerkon IP65 mains leads

Why Choose the Cloud 9

Traditional “dry ice” type low foggers can be expensive to operate, need special handling, and often can’t run for long without refilling. Cloud 9 gives you a similar floor-hugging look but uses standard fog / haze fluids plus water, so it’s easier for production companies to deploy repeatedly on tours, corporate events, themed attractions and weddings.
Because it’s road-cased, wheeled, DMX controllable, and fast to heat, it fits straight into hire stock or venue in-house inventory without extra cradles or dollies. The integrated ID hose lets you direct the fog where you want it (e.g. across a stage apron, down a catwalk, or onto a dance floor) rather than letting it spill randomly.

Specifications

Effect / Output

• Output: approx. 15,000 cfm (continuous low-lying fog)

• Coverage: up to ~3,230 ft² / 300 m² of floor area under typical conditions

• Low Fluid Shutdown: Yes (protects the unit)

• Fluid Types Supported: low-lying fog fluid for dense “CO₂-style” ground fog; can also run standard fog or haze-type fluids for different lift/dissipation behaviour.

  • HDF: medium / large coverage, fog dissipates after it rises

  • PHF: dual-purpose, becomes haze once it lifts

Control

• Control Protocol: DMX

• DMX Channels: 2

• Onboard digital display for stand-alone use and setup (fan / output)

Fluid & Water System

• Fog / haze fluid tank: ~0.92 gal / 3.5 L capacity

• Water tank: ~5.3 gal / 20 L capacity (distilled water recommended)

• Fluid consumption: ~29 ml/min (~0.75 gal/hour)

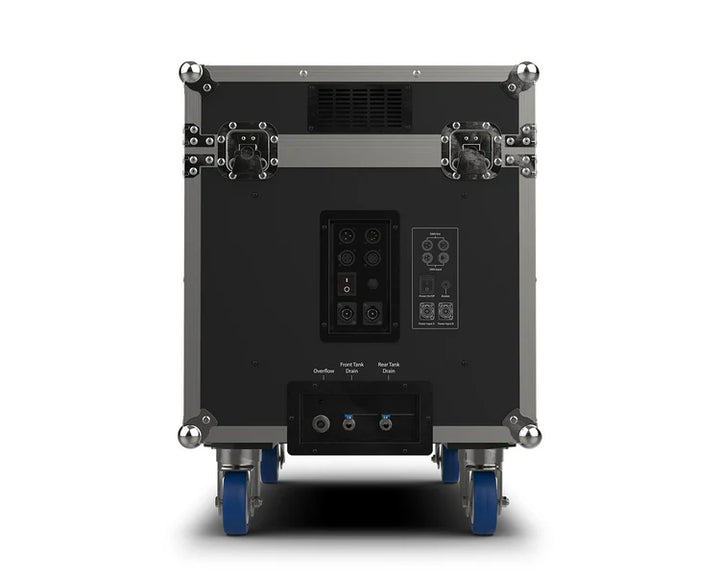

• Integrated water drain system for easier emptying after use

Electrical / Power

• Mains Input Versions: 120 V / 60 Hz or 230 V / 50 Hz available

• Power Draw (typical): up to ~4.2 kW at 230 V in high output conditions; dual inlets listed for 120 V configurations

• Heat-up Time: approx. 3–4 minutes from cold

• Power Connection: Seetronic Powerkon IP65 (supplied leads)

Physical

• Form Factor: Built into a flight case with locking casters; hinged lid allows operation with the lid open/attached

• Approx. Dimensions (case):

  • Height: ~630 mm

  • Width: ~860 mm

  • Depth: ~490 mm

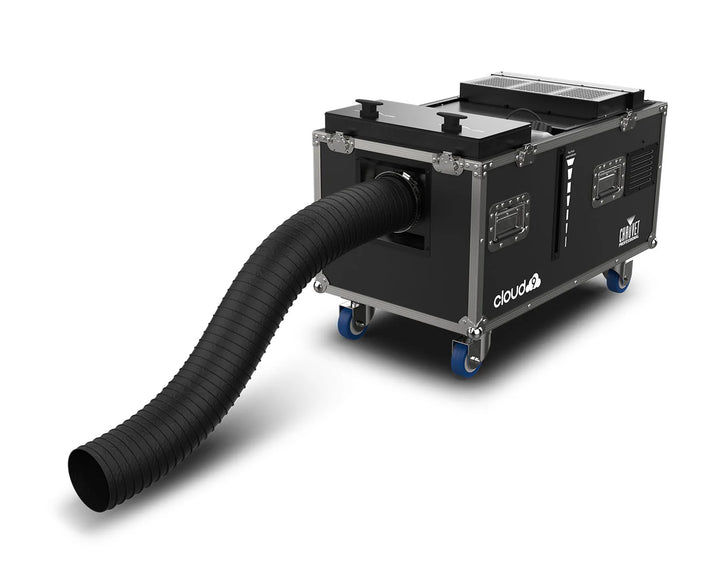

• Output Nozzle OD: ~121 mm, with supplied directional hose (approx. 2.44 m fully extended) and hose clamp

• Weight: ~55.8 kg (about 120–123 lb including the case)

Included in the box

• Cloud 9 main unit (road-cased)

• Directional hose + hose clamp

• Seetronic Powerkon IP65 mains leads

• Overflow / drain tubing
