Radial Catapult TX4 4-Channel Audio Snake Transmitter – Balanced XLR I/O via Cat 5 (R800-8022-00)
Safe and secure checkout

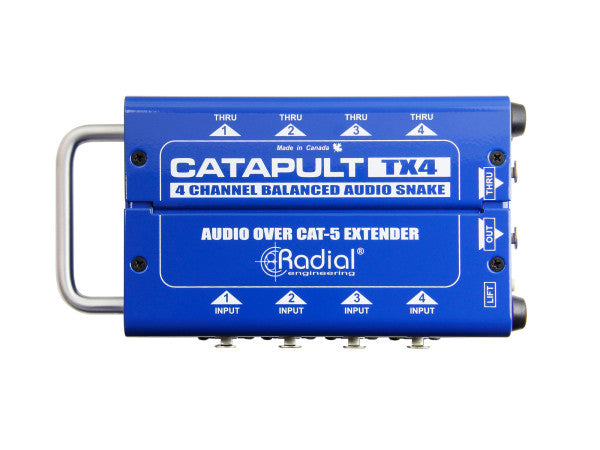

The Radial Catapult TX4 is a passive 4-channel audio snake transmitter that allows you to send analog or AES digital audio over standard Cat 5 or Cat 6 shielded twisted-pair cable. Designed for flexible signal routing in live sound, broadcast, and studio environments, the TX4 replaces traditional bulky multi-core snakes with a cost-effective, lightweight, and easy-to-source network cable solution.
With four balanced XLR inputs and mirrored XLR outputs, the Catapult TX4 acts as a signal launcher in the Catapult modular system—pair it with any Radial Catapult RX module for seamless, high-fidelity signal transmission across large stages or through existing cable infrastructure in installations.
Key Features
-
4-Channel Passive Audio Snake Transmitter
-
Balanced XLR Inputs and Outputs
-
Sends Mic or Line-Level Signals via shielded Cat 5/6 cable
-
No Power Required – Passive design eliminates the need for external power
-
Transformer-Free Model – Perfect for systems that don’t require isolation
-
Compatible with All Catapult RX Receivers (RX4, RX4L, RX4M, Catapult Mini)
-
14-Gauge Steel Chassis – Tour-ready ruggedness
-
Quick and Affordable Integration with standard Ethernet cables
Why Choose the Catapult TX4?
The Catapult TX4 makes professional-grade audio transport modular, simple, and cost-effective. It’s the perfect solution for venues, studios, and mobile rigs that want to move multiple channels of audio across long distances without adding weight, complexity, or noise.
By using Cat 5/6 cables, the TX4 takes advantage of readily available infrastructure while maintaining pristine analog signal quality—no digital conversion required. It’s ideal for both temporary live sound setups and permanent installations.
Specifications
| Feature | Details |
|---|---|
| Audio Circuit | Passive analog splitter (no transformer) |

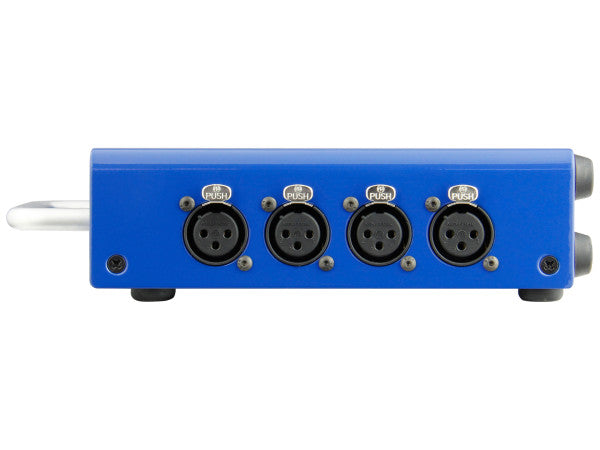

| Inputs | 4 x XLR-F, 1 x RJ45 (Cat 5) |

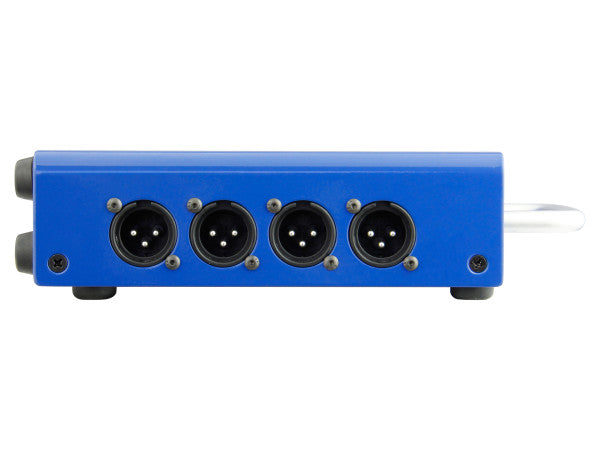

| Outputs | 4 x XLR-M, 1 x RJ45 (Cat 5) |
| Frequency Response | 7 Hz – 20 kHz |
| Dynamic Range | 140 dB |
| THD | 0.0005% @ 1 kHz |
| CMRR | >103 dB |
| Max Input | +35 dBu |
| Ground Lift | Not included (transformer-free model) |
| Chassis | 14-gauge steel |
| Dimensions (L x W x H) | 8.125" x 4.125" x 2" |
| Weight | 2.6 lbs (1.18 kg) |
| Shipping Weight | 2.9 lbs (1.32 kg) |
| Power Requirement | Passive – No power required |
| Operating Conditions | Indoor use, 5°C to 40°C |
| SKU | R800-8022-00 |
| UPC | 676101044351 |
