Blustream HD11AU HDMI Audio Embedder / De-Embedder – 4K UHD Audio Integration
Safe and secure checkout

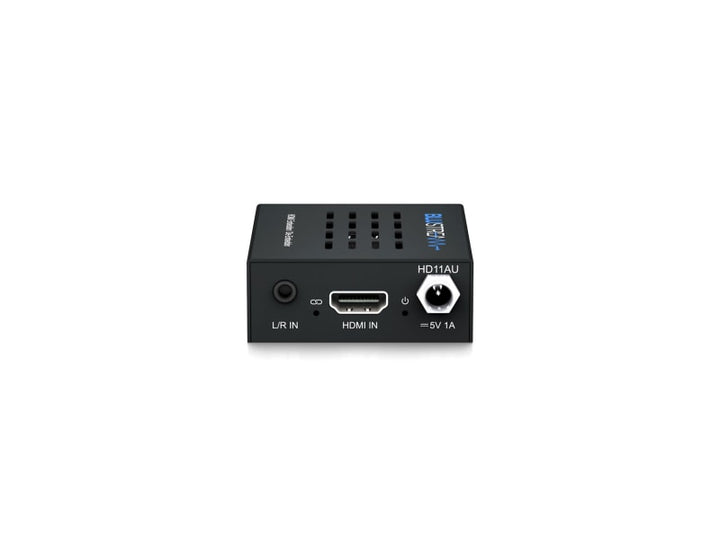

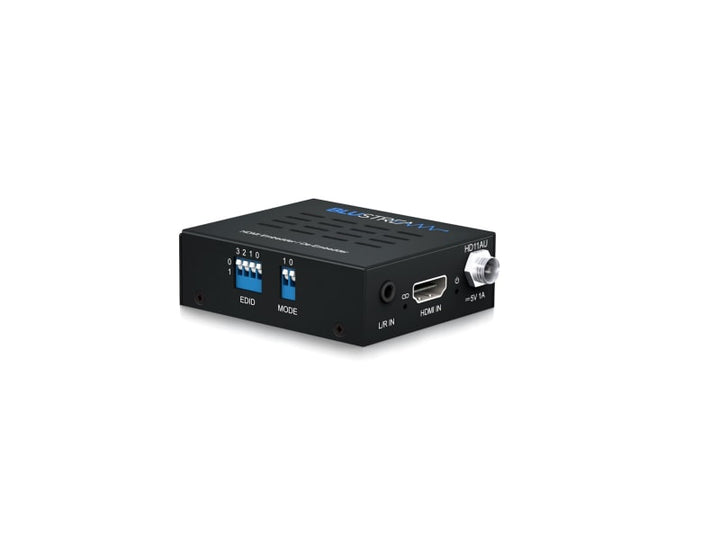

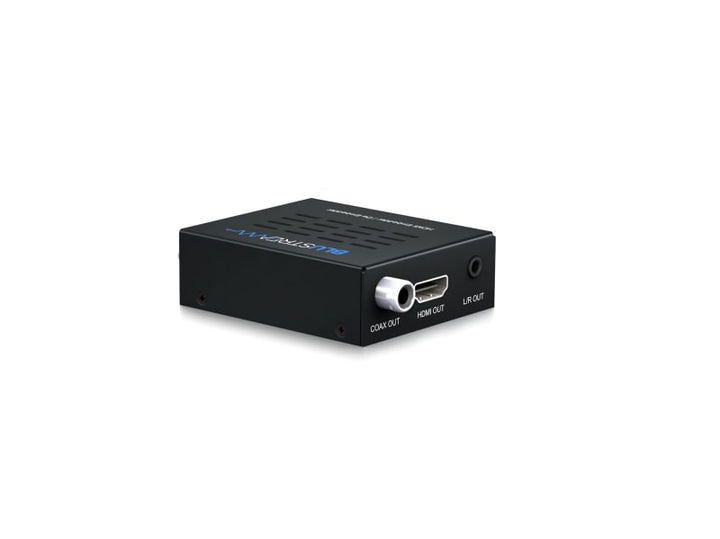

The Blustream HD11AU HDMI Audio Embedder / De-Embedder is a versatile solution for embedding or extracting audio within an HDMI signal path. Whether you need to de-embed audio to external speakers or embed analogue audio into an HDMI output, this device ensures seamless integration with home theaters, professional AV setups, and commercial installations. Supporting 4K UHD video, Dolby Atmos, DTS-HD Master Audio, and advanced EDID management, the HD11AU provides a reliable and high-performance solution for AV professionals.
Key Features
- Audio Embedder & De-Embedder – Works as either a HDMI audio extractor or audio injector.
- Multiple Audio Outputs – De-embeds HDMI audio to analogue L/R and coaxial digital outputs simultaneously.
- 4K UHD Video Support – Compatible with 3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0 resolutions.
- Universal Compatibility – Works with VGA to WUXGA and 480i to 4K resolutions.
- Audio Extraction Without Display – Functions as an end-sink to extract audio even when no display is connected.
- Supports HDMI Audio Formats – Compatible with Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS-HD Master Audio, and more.
- CEC Bypass – Allows Consumer Electronics Control (CEC) pass-through.
- Advanced EDID Management – Resolves HDMI handshake issues when used as a repeater.
- HDCP 1.4 Compliant – Ensures secure content protection compatibility.
Why Choose the Blustream HD11AU?
The Blustream HD11AU HDMI Audio Embedder / De-Embedder is ideal for AV installers, home theater enthusiasts, and commercial audio-visual setups. Whether integrating legacy audio sources, extracting high-quality audio for an external sound system, or embedding audio into an HDMI feed, the HD11AU ensures a seamless and flexible AV solution. Its advanced EDID controls and 4K UHD support provide maximum compatibility across different devices, eliminating audio and video signal issues.
Specifications
| Specification | Details |
|---|---|
| Video Input | 1x HDMI Type A |
| Video Output | 1x HDMI Type A |
| Audio Outputs | 1x Coaxial Digital, 1x Analogue L/R (3.5mm) |
| Supported Video Resolutions | 4K UHD (30Hz 4:4:4, 24Hz 4:4:4, 60Hz 4:2:0) |
| Supported Audio Formats | Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, Dolby Digital Plus |
| HDCP Compliance | HDCP 1.4 |
| CEC Support | Yes |
| EDID Management | Yes |
| Power Supply | 5V/1A DC |
| Dimensions | 120mm x 75mm x 25mm |
| Operating Temperature | 0°C to 40°C |
