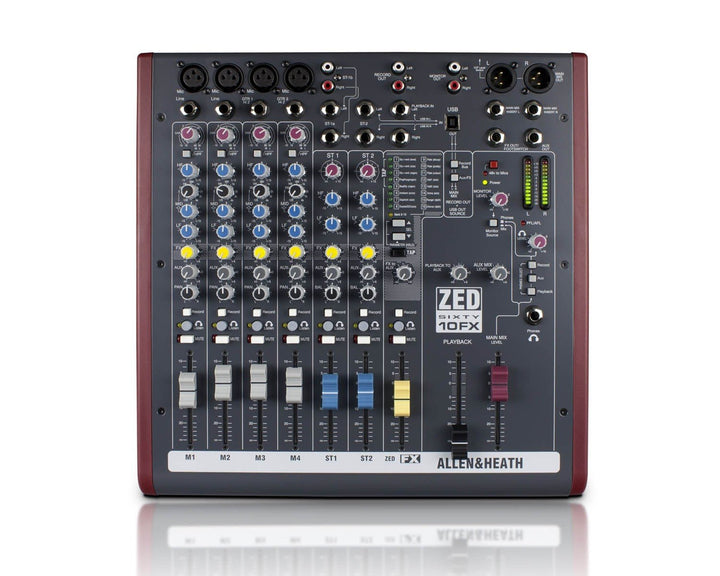

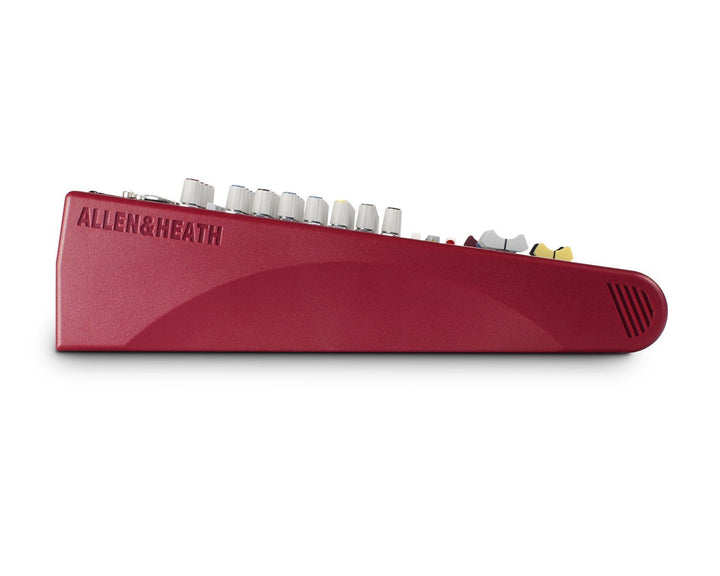

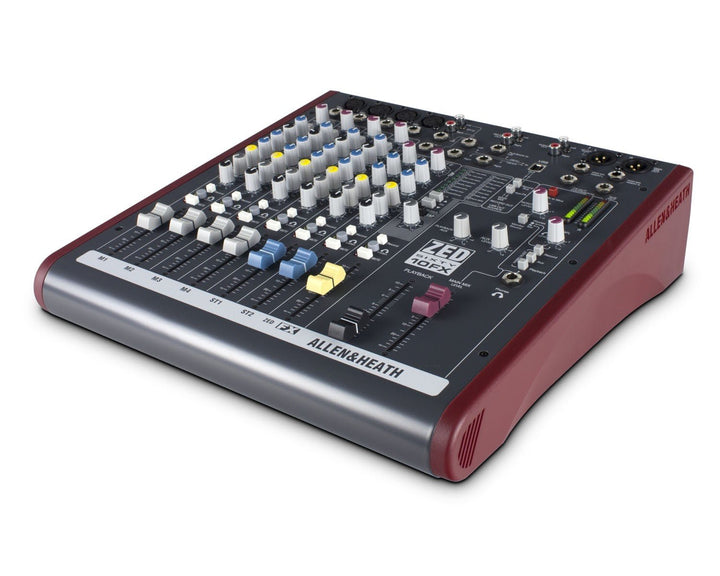

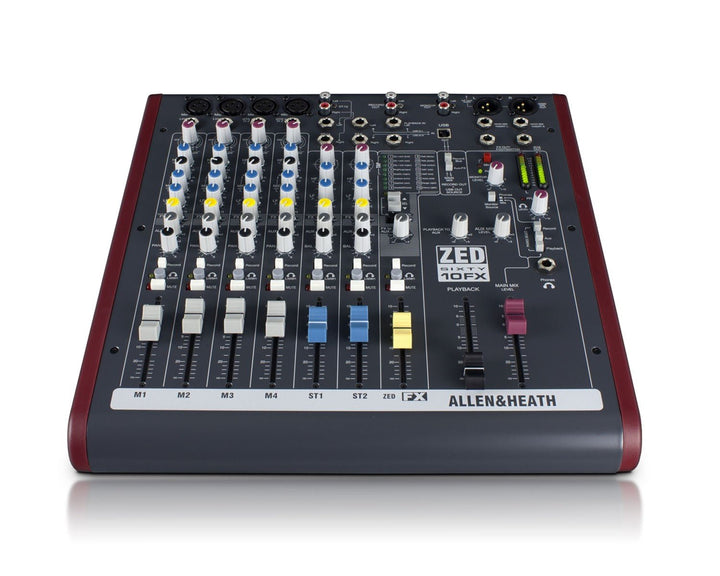

Allen & Heath ZED60-10FX 4-Mic/Line 2 Stereo i/p Console with 60mm Faders

£460.00
Add to Wishlist

Safe and secure checkout

apple paygoogle paymaestromasterpaypalshopify payvisa
Ask a Question
SKU: ALLZ6010FX
Availability : In Stock Available from Supplier Out of stock
Description

The ZED60-10FX is a compact 4-mic/line, 2-stereo input mixer with 60mm faders, designed for both live sound and recording applications. It features 16 onboard effects, high-quality preamps with Class A FET high impedance inputs suitable for direct guitar connections, and a flexible USB audio interface for easy recording and playback. The mixer provides professional connectivity with XLR main outputs, comprehensive monitoring options, and intuitive controls.

Specifications:

  • Inputs:

    • Mono Channel (XLR): -10 to -60dBu (nominal), +11dBu max
    • Mono Channel Line Input (Jack): +10 to -40dBu, +31dBu max
    • Stereo Input (Jack/Phono): 0dBu nominal, Off to +15dB control

  • Outputs:

    • L/R Outputs (XLR): Normal 0dBu/DI out -30dBu, +21dBu max/-9dBu max
    • Aux & FX Outputs (Jack): 0dBu nominal, +21dBu max
    • Record & Monitor Outputs (Phono): 0dBu nominal, +21dBu max

  • Frequency Response:

    • Mic to Mix L/R Out (30dB gain): +0.5/-1dB, 10Hz to 30kHz
    • Line to Mix L/R Out (0dB gain): +0.5/-1dB, 10Hz to 25kHz
    • Stereo to Mix L/R Out: +0.5/-1dB, 10Hz to 30kHz

  • Total Harmonic Distortion + Noise (THD+n):

    • Mic to Mix L/R Out (10dB gain, 1kHz): 0.002% at +10dBu output
    • Mic to Mix L/R Out (30dB gain, 1kHz): 0.01%
    • Line to Mix L/R Out (0dB gain, 1kHz): 0.003%
    • Stereo to Mix L/R Out (0dB gain, 1kHz): 0.002%
    • Guitar Input to Mix L/R Out (Boost OFF): 0.015%
    • Guitar Input to Mix L/R Out (Boost ON): 2% Second Harmonic

  • Headroom:

    • Analogue Headroom from nominal (0Vu): 21dB
    • USB in/out headroom from nominal (0Vu): 14dB

  • Noise:

    • Mic Pre EIN @ max gain, 150Ω input Z: -127dBu (22-22kHz)
    • Mix L/R Out, faders at 0, Levels min: -96dBu (22-22kHz)

  • USB Audio Codec:

    • Compliance: USB 1.1
    • Resolution: 16-bit
    • Sample Rates: 32kHz, 44.1kHz, 48kHz

  • Physical Dimensions:

    • Width: 336mm
    • Height: 95mm
    • Depth: 346mm
    • Weight: 3.8kg

Features:

  • 4 mic/line inputs, 2 with high impedance guitar inputs
  • 60mm faders for precise control
  • 3-band EQ with sweepable mid-frequency (MusiQ)
  • 16 onboard effects
  • USB stereo audio in/out
  • 1 pre-fade Aux send, 1 FX send
  • 2 stereo inputs
  • XLR main stereo outputs with inserts
  • Comprehensive monitoring section
  • 48V phantom power for microphones
  • DI level switching with Gain Boost
  • Neutrik XLR and 1/4" jack connectors
