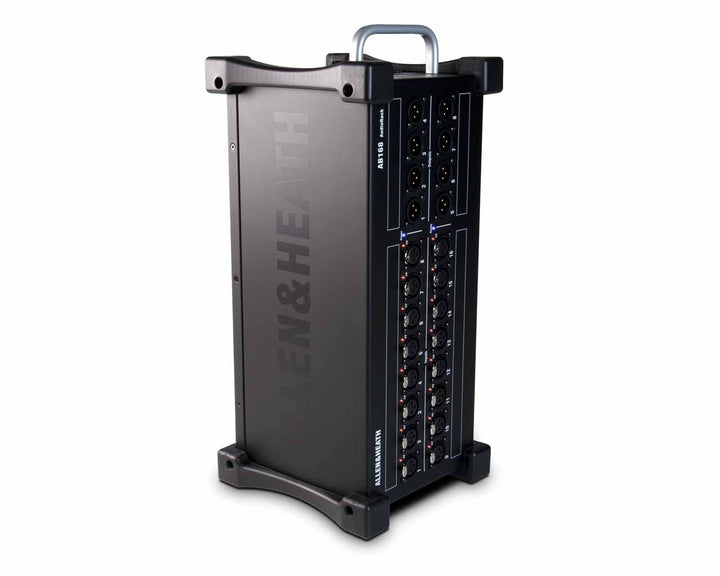

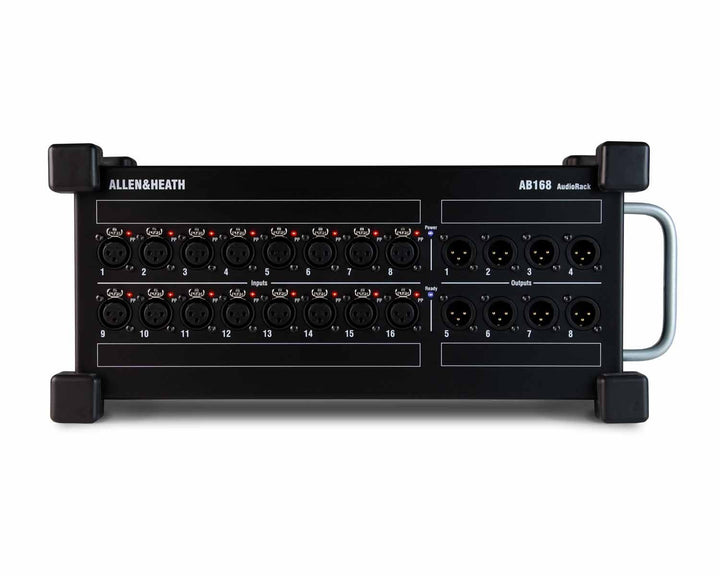

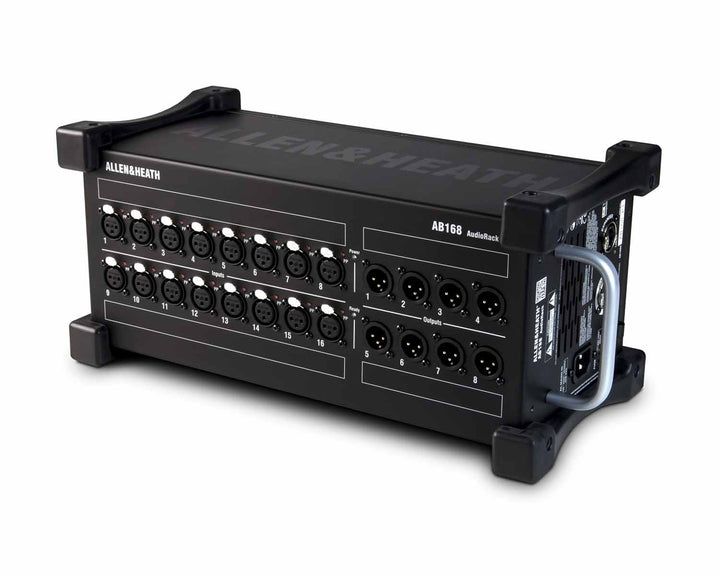

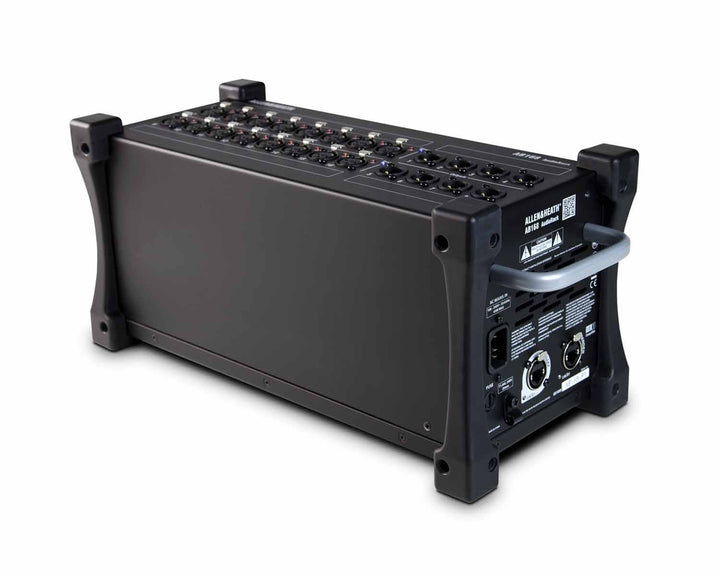

Introducing the AB168 Portable AudioRack, designed to deliver professional-grade audio performance with unparalleled convenience and flexibility. Ideal for use with Qu, Avantis, and SQ mixers, as well as the AHM-64 audio matrix processor, this portable rack offers exceptional versatility for both live and studio applications.
Key Features:
- 16 Mic Preamps: Equipped with 16 high-quality mic preamps, the AB168 ensures pristine sound capture for all your audio sources.
- 8 XLR Line Outs: With 8 XLR line outputs, this rack provides ample connectivity options for routing audio signals to your mixer or other devices.
- Expander Port: Includes an expander port for daisy-chaining up to 2 AB168 Expanders or connecting ME personal mixers, offering expanded functionality and versatility.
- Optional Rack Mount Kit: An optional 19-inch rack mount kit is available for convenient installation and integration into your existing setup.
- Extended Connectivity: Compatible with CAT5e (or higher) cables of up to 100m, allowing for flexible placement and extended reach.

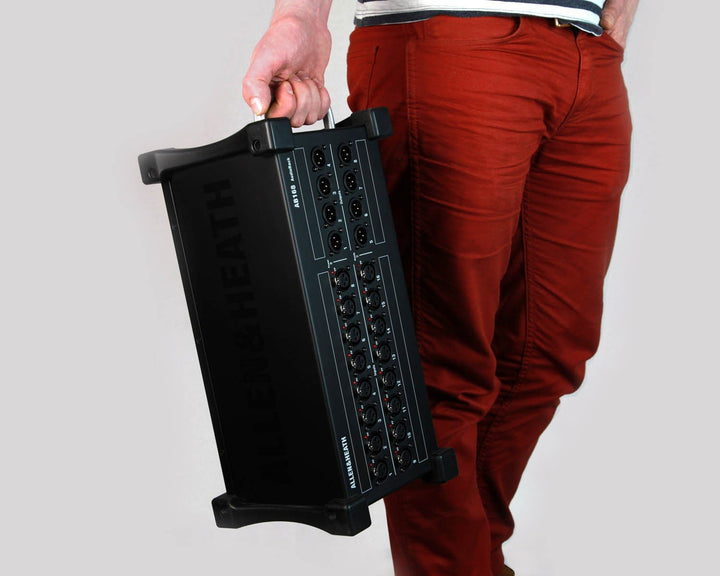

- Rugged Design: Built to withstand the rigors of the road, the AB168 features rubber bumpers and a sturdy carry handle for easy transport and maximum durability.
Product Specifications:
General:
- Inputs: XLR Mic/Line Inputs, fully recallable mic/line preamp
- Input Sensitivity: -60 to +15dBu
- Analogue Gain: +5 to +60dB, 1dB steps
- Maximum Input Level: +32dBu
- Outputs: XLR Outputs, relay protected
- Output Impedance: <75Ω
- Operating Temperature: 0°C to 35°C (32°F to 95°F)
- Mains Power: 100-240V, 50/60 Hz, 20W max
Physical & Dimensions:
- Width: 411.45mm
- Depth: 189mm
- Height: 182.10mm
- Weight: 4.8kg
