Description
CA M26 DMX Merger/Splitter - 2-In/6-Out Signal Processor (CONT20)
Product Overview

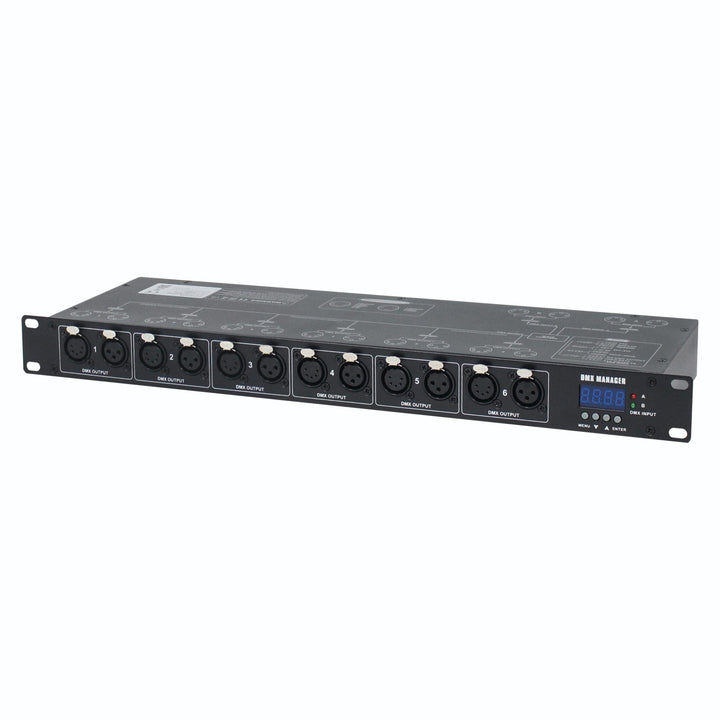

The CA M26 DMX Merger/Splitter and Amplifier by Acme is a versatile and reliable tool for professional DMX signal management. Equipped with two DMX inputs and six DMX outputs, each featuring 3-pin and 5-pin XLR connectors, this device is designed to handle complex lighting setups. With multiple merging modes, adjustable DMX refresh rates, and 100% electrical isolation between inputs and outputs, this 1U rack-mountable unit is ideal for events, installations, and live productions.
Key Features
-
Flexible Signal Splitting and Merging:
- Splitter Function: Distributes DMX signals across six isolated outputs.
-
Merging Modes:
- HTP (Highest Takes Priority): Merges two DMX signals by prioritizing the highest channel value.
- Backup Mode: Automatically switches to input B if input A fails.
- Merge Mode: Combines signals from two controllers with a selectable start address for the second input.
-
Comprehensive Connectivity:

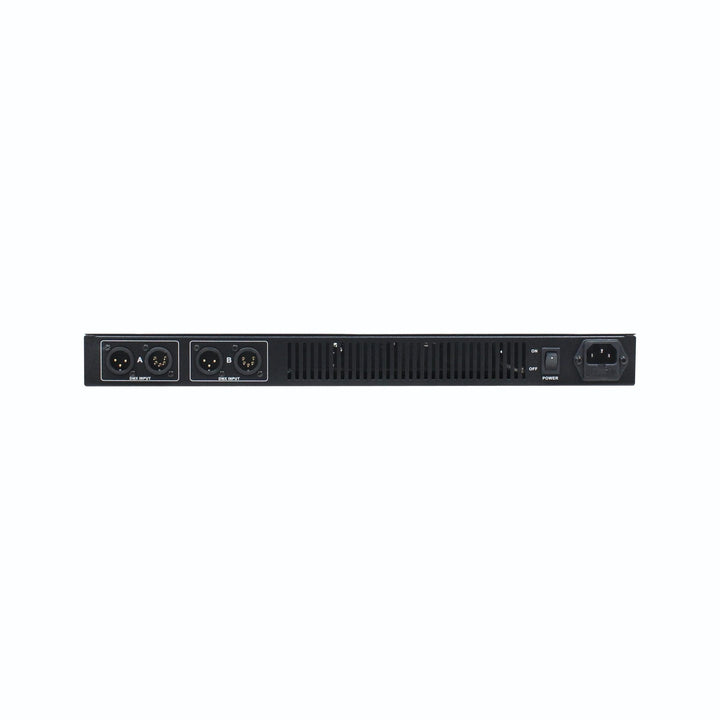

- Two DMX inputs and six DMX outputs with both 3-pin and 5-pin XLR connectors.
-
Performance Optimization:
- Adjustable DMX refresh rate: 23ms (44Hz) to 45ms (22Hz).
- Ensures stable and reliable signal distribution.
-
Professional-Grade Build:
- 1U, 19" rack-mountable design for convenient integration into standard racks.
- 100% electrical isolation for enhanced safety and signal integrity.
Why Choose the CA M26 DMX Merger/Splitter?
- Versatile Applications: Ideal for complex lighting setups in live events, theater, and permanent installations.
- Enhanced Reliability: Prevents signal loss or interference with isolated outputs and backup modes.
- User-Friendly Design: Simple integration into existing lighting systems with multiple connectivity options.
Specifications
- DMX Inputs: 2 (3-pin and 5-pin XLR connectors)

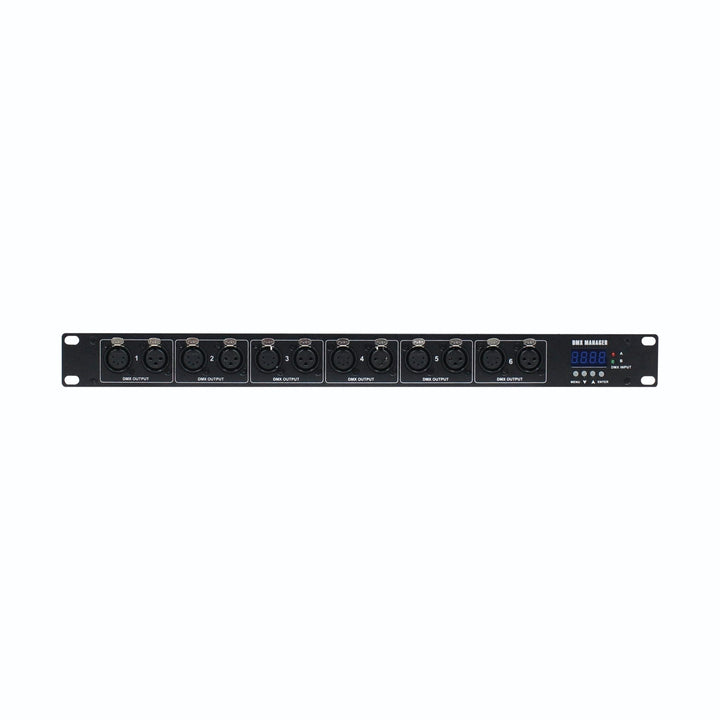

- DMX Outputs: 6 (3-pin and 5-pin XLR connectors)
- DMX Refresh Rate: 23ms (44Hz) to 45ms (22Hz)
- Electrical Isolation: 100% between inputs and outputs
- Power Supply: 240V, 50Hz
- Rack Size: 1U, 19" rack-mountable
- Dimensions: 44 x 483 x 150mm (H x W x D)
- Weight: 2.9kg
